MKS4U041009FD4KSSD
ActiveWIMA

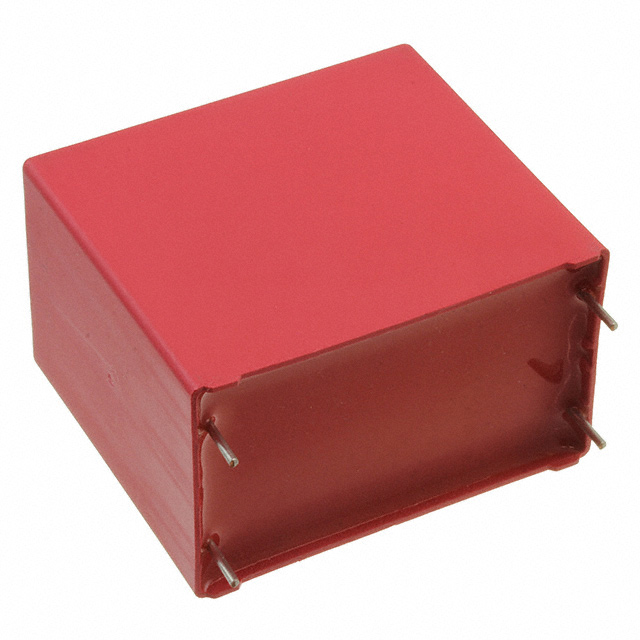

CAP FILM 1UF 10% 2KVDC RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MKS4U041009FD4KSSD
ActiveWIMA
CAP FILM 1UF 10% 2KVDC RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MKS4U041009FD4KSSD |
|---|---|
| Applications | Automotive, DC Link, DC Filtering |
| Capacitance | 1 µF |
| Dielectric Material | Polyethylene Terephthalate (PET), Metallized, Polyester |
| Lead Spacing | 52.5 mm |
| Lead Spacing | 2.067 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial - 4 Leads |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 2.244 in |
| Size / Dimension [x] | 57 mm |
| Size / Dimension [y] | 1.378 " |
| Size / Dimension [y] | 35 mm |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 400 V |
| Voltage Rating - DC | 2 kV |
| Voltage Rating - DC | 2 kVDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.03 | |
| 25 | $ 10.83 | |||
| 50 | $ 10.59 | |||
Description
General part information
MKS4U041009FD4KSSD
1 µF Film Capacitor 400V 2000V (2kV) Polyester, Polyethylene Terephthalate (PET), Metallized Radial - 4 Leads
