962835-3

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13.5-17AWG 0.375

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13.5-17AWG 0.375

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

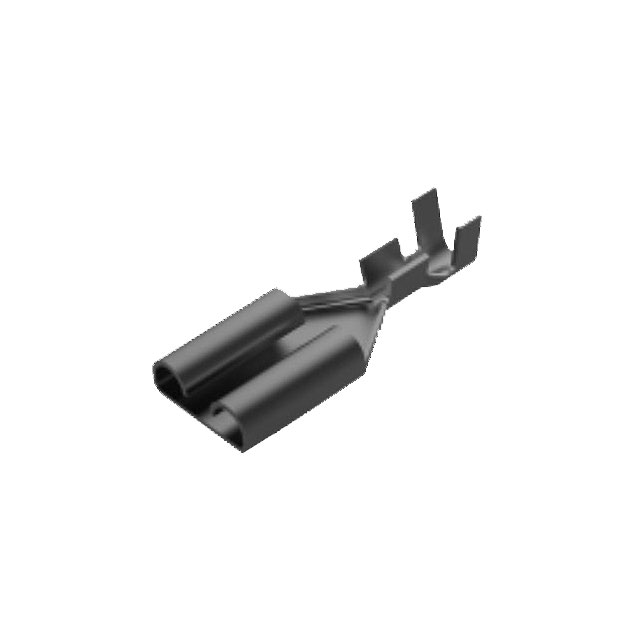

0.375" (9.53mm) Quick Connect Female 13.5-17 AWG Crimp Connector Non-Insulated

Technical documentation and resources

No documents available

Specification	962835-3	962835 Series

Contact Finish	Tin	Tin, Silver
Contact Material	Phosphor Bronze	Phosphor Bronze
Gender	Female	Female
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	3.71 mm	3.71 mm
Insulation Diameter [Max] [diameter]	0.146 "	0.146 "
Insulation Diameter [Min] [diameter]	2.39 mm	2.39 mm
Insulation Diameter [Min] [diameter]	0.094 in	0.094 in
Length - Overall [x]	1.063 in	1.063 in
Length - Overall [x]	27 mm	27 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Length	0.465 in	0.465 in
Tab Length	11.8 mm	11.8 mm
Tab Thickness	0.048 in	0.048 in
Tab Thickness	1.22 mm	1.22 mm
Tab Width	0.375 in	0.375 in
Tab Width	9.53 mm	9.53 mm
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	17 AWG	17 AWG
Wire Gauge [Min]	14 AWG	14 AWG

Part	Tab Thickness	Tab Thickness	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall [x]	Length - Overall [x]	Terminal Type	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation	Tab Length	Tab Length	Mounting Type	Contact Finish	Tab Width	Tab Width	Contact Material	Termination
TE Connectivity AMP Connectors 962835-3	0.048 in	1.22 mm	Female	14 AWG	17 AWG	1.063 in	27 mm	Standard	3.71 mm	0.146 "	2.39 mm	0.094 in	Non-Insulated	0.465 in	11.8 mm	Free Hanging (In-Line)	Tin	0.375 in	9.53 mm	Phosphor Bronze	Crimp
TE Connectivity AMP Connectors 962835-2	0.048 in	1.22 mm	Female	14 AWG	17 AWG	1.063 in	27 mm	Standard	3.71 mm	0.146 "	2.39 mm	0.094 in	Non-Insulated	0.465 in	11.8 mm	Free Hanging (In-Line)	Silver	0.375 in	9.53 mm	Phosphor Bronze	Crimp
