Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | Y1011U2C803LQE | Y Series Series |
|---|---|---|
| Actuator Type | Flat Key | Flat Key, Tubular Key |
| Angle of Throw | 90 ° | 45 - 90 ° |
| Circuit | SPDT | SPDT, DP3T, DPDT, SP3T, DP4T |
| Contact Finish | Silver | Silver, Gold |
| Contact Material | Copper | Copper |
| Contact Timing | Not Specified | Not Specified |
| Current Rating (Amps) | 4 A | 0.4 - 4 A |
| Depth Behind Flange | 28.83 mm | 21.8 - 35.84 mm |
| Depth Behind Flange | - | 20.68 - 36.35 mm |
| Electrical Life | 10000 Cycles | 10000 Cycles |
| Features | Epoxy Sealed Terminals, Latch Pawl | Antistatic, Epoxy Sealed Terminals, Latch Pawl |
| Key Removable Positions | All | 1 only, All, 1 and 3 |
| Key Removable Positions | - | 2 |
| Mounting Type | - | Through Hole |
| Number of Positions | 2 | 2 - 4 |
| Operating Temperature | - | -30 ░C |
| Operating Temperature | - | 85 °C |
| Panel Cutout Dimensions [diameter] | 19.3 mm | 19.3 mm |
| Switch Function | On-On | On-On, On-On-On, On-Mom, On-On-On-On |
| Termination Style | Solder Lug | Solder Lug, Wire Leads, PC Pin |
| Voltage Rating - AC | 125 V | 20 - 125 V |
| Voltage Rating - DC | 28 V | 20 - 28 V |
Y Series Series
4, 5 & 6 Tumbler Switchlock
...
| Part | Contact Finish | Circuit | Number of Positions | Termination Style | Actuator Type | Angle of Throw | Contact Material | Switch Function | Panel Cutout Dimensions [diameter] | Depth Behind Flange | Voltage Rating - DC | Current Rating (Amps) | Contact Timing | Electrical Life | Key Removable Positions | Voltage Rating - AC | Features | Depth Behind Flange [z] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Key Removable Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE Y101132C203NQ | Silver | SPDT | 2 | Solder Lug | Flat Key | 90 ° | Copper | On-On | 19.3 mm | 28.83 mm | 28 V | 4 A | Not Specified | 10000 Cycles | 1 only | 125 V | ||||||
LITTELFUSE Y1011U2C203NG | Gold | SPDT | 2 | Solder Lug | Flat Key | 90 ° | Copper | On-On | 19.3 mm | 28.83 mm | 28 V | 4 A | Not Specified | 10000 Cycles | All | 125 V | ||||||
LITTELFUSE Y200822C203NQ | Silver | DP3T | Solder Lug | Flat Key | 45 ° | Copper | On-On-On | 19.3 mm | 28.83 mm | 28 V | 4 A | Not Specified | 10000 Cycles | 1 only | 125 V | |||||||
LITTELFUSE Y2011U2R203NQ | Silver | DPDT | 2 | Solder Lug | Flat Key | 90 ° | Copper | On-On | 19.3 mm | 35.84 mm | 28 V | 4 A | Not Specified | 10000 Cycles | All | 125 V | Antistatic | |||||
LITTELFUSE Y100822C2WCNG | Gold | SP3T | Wire Leads | Flat Key | 45 ° | Copper | On-On-On | 19.3 mm | 28 V | 4 A | Not Specified | 10000 Cycles | 1 only | 125 V | 23.14 mm | |||||||
LITTELFUSE Y201132C201NQ | Silver | DPDT | 2 | Solder Lug | Flat Key | 90 ° | Copper | On-On | 19.3 mm | 28.83 mm | 28 V | 4 A | Not Specified | 10000 Cycles | 1 only | 125 V | ||||||
LITTELFUSE Y108122A2WCNQ | Silver | SPDT | 2 | Wire Leads | Flat Key | 45 ° | Copper | On-Mom | 19.3 mm | 28 V | 4 A | Not Specified | 10000 Cycles | 1 only | 125 V | 20.68 mm | -30 ░C | 85 °C | Through Hole | |||
LITTELFUSE Y2011C2C2WCNQ | Silver | DPDT | 2 | Wire Leads | Flat Key | 90 ° | Copper | On-On | 19.3 mm | 28 V | 4 A | Not Specified | 10000 Cycles | 125 V | 23.14 mm | 2 | ||||||
LITTELFUSE Y2011C2C203NQ | Silver | DPDT | 2 | Solder Lug | Flat Key | 90 ° | Copper | On-On | 19.3 mm | 28.83 mm | 28 V | 4 A | Not Specified | 10000 Cycles | 125 V | 2 | ||||||
LITTELFUSE Y2001U2C803NQ | Silver | DP3T | Solder Lug | Flat Key | 45 ° | Copper | On-On-On | 19.3 mm | 28.83 mm | 28 V | 4 A | Not Specified | 10000 Cycles | 1 and 3 | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
Y Series Series

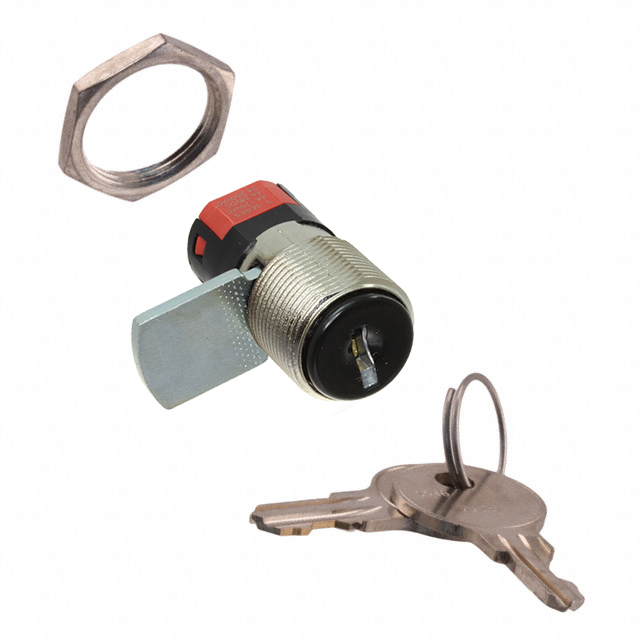

The Y series 4, 5 & 6 tumbler switchlock from C&K is an anti-static switch, exceeding 20 KV DC static resistance. Typically used in cash registers, point-of-sale terminals and computers, the high-performing Y series is also available in momentary models and with wire leads and/or harnesses.
