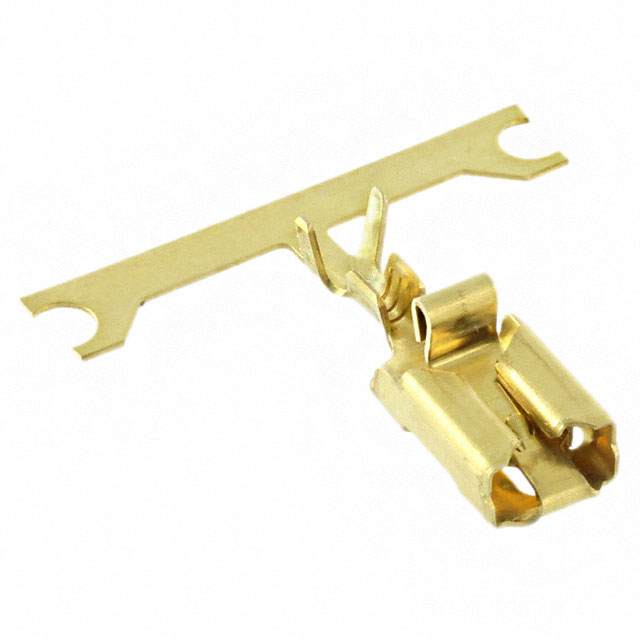

880646-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 17-20AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
880646-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 17-20AWG 0.250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 880646-1 | 880646 Series |
|---|---|---|
| Contact Finish | - | Tin |
| Contact Material | Brass | Brass, Phosphor Bronze |
| Gender | Female | Female |
| Insulation | Non-Insulated | Non-Insulated |
| Insulation Diameter [Max] | 3.3 mm | 3.3 mm |
| Insulation Diameter [Max] | 0.13 in | 0.13 in |
| Insulation Diameter [Min] | 2 mm | 2 mm |
| Insulation Diameter [Min] | 0.079 in | 0.079 in |
| Length - Overall [x] | 20.6 mm | 20.6 mm |
| Length - Overall [x] | 0.811 in | 0.811 in |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 6.35 mm | 6.35 mm |
| Tab Width | 0.25 in | 0.25 in |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17 AWG | 17 AWG |
880646 Series
CONN QC RCPT 17-20AWG 0.250
| Part | Mounting Type | Gender | Insulation | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width | Tab Width | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Termination | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 880646-1 | Free Hanging (In-Line) | Female | Non-Insulated | Standard | 17 AWG | 20 AWG | 6.35 mm | 0.25 in | 2 mm | 3.3 mm | 0.13 in | 0.079 in | 20.6 mm | 0.811 in | 0.032 in | 0.81 mm | Crimp | Brass | |
TE Connectivity AMP Connectors 880646-6 | Free Hanging (In-Line) | Female | Non-Insulated | Standard | 17 AWG | 20 AWG | 6.35 mm | 0.25 in | 2 mm | 3.3 mm | 0.13 in | 0.079 in | 20.6 mm | 0.811 in | 0.032 in | 0.81 mm | Crimp | Phosphor Bronze | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.28 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.15 | |||
| Tape & Reel (TR) | 4500 | $ 0.16 | ||
| 9000 | $ 0.15 | |||
| 13500 | $ 0.14 | |||
| 22500 | $ 0.14 | |||
| 31500 | $ 0.13 | |||
| 45000 | $ 0.13 | |||
Description
General part information
880646 Series
0.250" (6.35mm) Quick Connect Female 17-20 AWG Crimp Connector Non-Insulated
