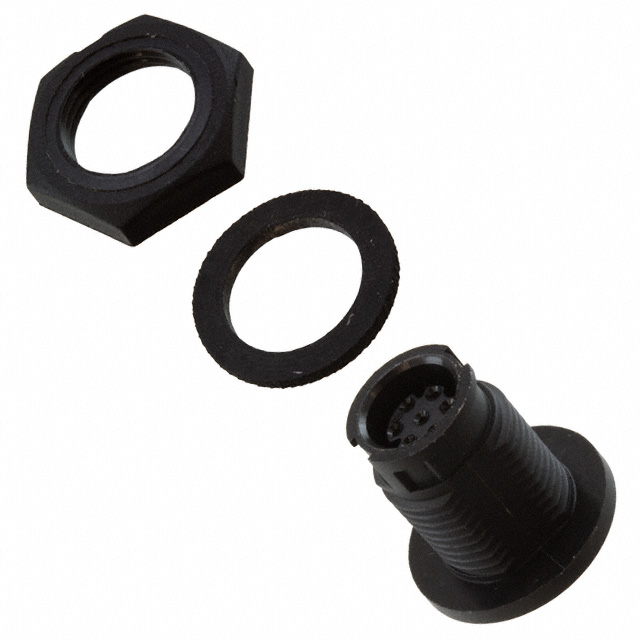

17982-7SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	17982-7SG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN RCPT FMALE 7P GOLD SLDR CUP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Ingress Protection	Number of Positions	Color	Orientation	Contact Finish - Mating	Voltage Rating	Contact Material	Applications	Shielding	Material Flammability Rating	Primary Material	Connector Type	Current Rating (Amps)	Mounting Feature
Conxall/Switchcraft 17982-7SG-300	85 °C	-40 °C	Bayonet Lock	IP67 - Dust Tight, Waterproof	7	Black	B	Gold	600 VAC	Copper Alloy	Data, Industrial, Instrumentation, Medical	Unshielded	UL94 HB	Plastic	Receptacle, Female Sockets	3.5 A	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
