BVN-M-R001-5.0
ActiveIsabellenhuette USA

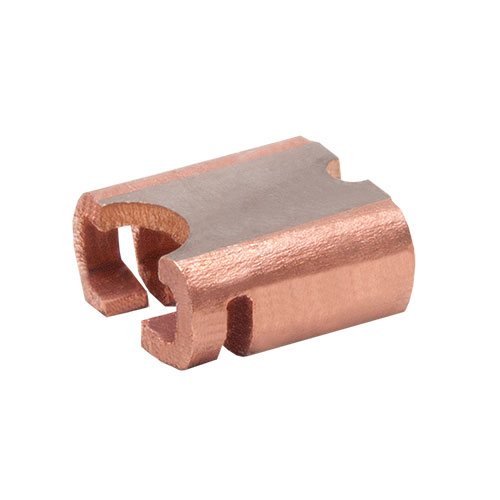

RESISTOR - ISA-WELD SHUNT, 0.001
BVN-M-R001-5.0
ActiveIsabellenhuette USA
RESISTOR - ISA-WELD SHUNT, 0.001
Description
General part information
BVN-M-R001-5.0
1 mOhms ±5% 7W Chip Resistor Wide 1612 (3831 Metric), 1216 Automotive AEC-Q200, Current Sense, Moisture Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | BVN-M-R001-5.0 |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) | 0.075 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 1216, Wide 1612 (3831 Metric) |
| Package Name | 1216 |
| Power (Watts) | 7 W |
| Resistance | 1 mOhms |
| Size / Dimension Length | 0.122 in |
| Size / Dimension Width | 0.161 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
