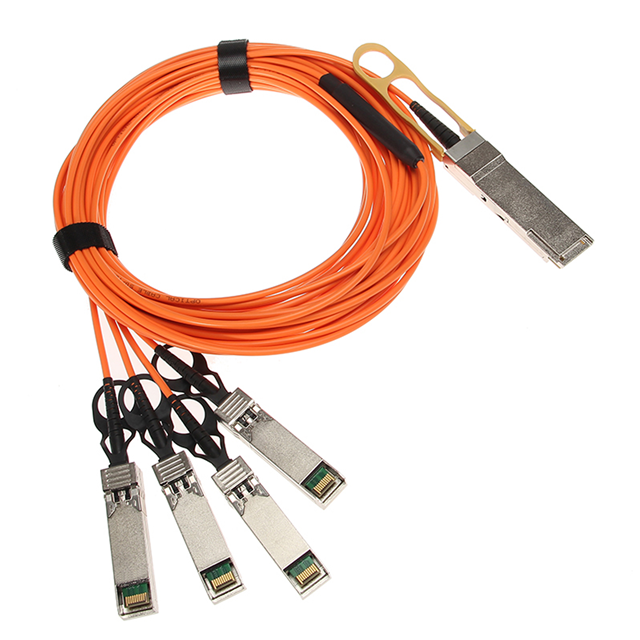

QSFP-4X10G-AOC20M-C

Active

ATGBICS

COMPATIBLE AOC 40G 20M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QSFP-4X10G-AOC20M-C

Active

ATGBICS

COMPATIBLE AOC 40G 20M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 415.00
		50	$ 394.25
		150	$ 373.50
		1000	$ 352.75

Description

General part information

QSFP-4X10G Series

Position QSFP+ to SFP+ (4) Plug to Plug (4) 65.62' (20.00m) Orange, Aqua Unshielded

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QSFP-4X10G-AOC20M-C	QSFP-4X10G Series

Applications	-	General Purpose, Networking
Cable Connectors	QSFP+ to SFP+ (4)	QSFP+ to SFP+ (4)
Cable Type	Round	Round
Color	Aqua, Orange	Aqua, Orange
Connector Type	Plug to Plug	Plug to Plug, MPO-12
Connector Type	4	4
Data Rate	-	40 Gbps
Fastening Type	Push-Pull	Push-Pull
Features	Active	Active
Gender	Male to Male	Male to Male
Length	20 m	10 - 20 m
Length	65.62 ft	32.81 - 65.62 ft
Length	-	3.28 - 49.21 '
Length	-	1 - 15 m
Mounting Type	-	Pluggable, QSFP+
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Shielding	Unshielded	Unshielded
Usage	Data Center Server Rack, Ethernet, Network	Data Center Server Rack, Ethernet, Network
Voltage - Supply	-	3.3 V
Wavelength	-	850 - 1310 nm

QSFP-4X10G Series

COMPATIBLE AOC 40G 5M

Part	Usage	Shielding	Connector Type	Connector Type	Cable Type	Fastening Type	Cable Connectors	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Features	Length	Length	Color	Length [x]	Length [x]	Data Rate	Mounting Type	Voltage - Supply	Applications	Wavelength
ATGBICS QSFP-4X10G-AOC5M-C	Data Center Server Rack, Ethernet, Network	Unshielded	Plug to Plug	4	Round	Push-Pull	QSFP+ to SFP+ (4)	Male to Male	70 °C	0 °C	Active
ATGBICS QSFP-4X10G-AOC10M-C	Data Center Server Rack, Ethernet, Network	Unshielded	Plug to Plug	4	Round	Push-Pull	QSFP+ to SFP+ (4)	Male to Male	70 °C	0 °C	Active	10 m	32.81 ft	Aqua, Orange
ATGBICS QSFP-4X10G-AOC20M-C	Data Center Server Rack, Ethernet, Network	Unshielded	Plug to Plug	4	Round	Push-Pull	QSFP+ to SFP+ (4)	Male to Male	70 °C	0 °C	Active	20 m	65.62 ft	Aqua, Orange
ATGBICS QSFP-4X10G-AOC15M-C	Data Center Server Rack, Ethernet, Network	Unshielded	Plug to Plug	4	Round	Push-Pull	QSFP+ to SFP+ (4)	Male to Male	70 °C	0 °C	Active				49.21 '	15 m
ATGBICS QSFP-4X10G-AOC3M-C	Data Center Server Rack, Ethernet, Network	Unshielded	Plug to Plug	4	Round	Push-Pull	QSFP+ to SFP+ (4)	Male to Male	70 °C	0 °C	Active			Aqua, Orange	9.84 ft	3 m
ATGBICS QSFP-4X10G-LR-C			MPO-12														40 Gbps	Pluggable, QSFP+	3.3 V	General Purpose, Networking	1310 nm
ATGBICS QSFP-4X10G-SR-C			MPO-12														40 Gbps	Pluggable, QSFP+	3.3 V	General Purpose, Networking	850 nm
ATGBICS QSFP-4X10G-AOC7M-C	Data Center Server Rack, Ethernet, Network	Unshielded	Plug to Plug	4	Round	Push-Pull	QSFP+ to SFP+ (4)	Male to Male	70 °C	0 °C	Active			Aqua, Orange	22.97 '	7 m
ATGBICS QSFP-4X10G-AOC2M-C	Data Center Server Rack, Ethernet, Network	Unshielded	Plug to Plug	4	Round	Push-Pull	QSFP+ to SFP+ (4)	Male to Male	70 °C	0 °C	Active			Aqua, Orange	6.56 ft	2 m
ATGBICS QSFP-4X10G-AOC1M-C	Data Center Server Rack, Ethernet, Network	Unshielded	Plug to Plug	4	Round	Push-Pull	QSFP+ to SFP+ (4)	Male to Male	70 °C	0 °C	Active			Aqua, Orange	3.28 ft	1 m
