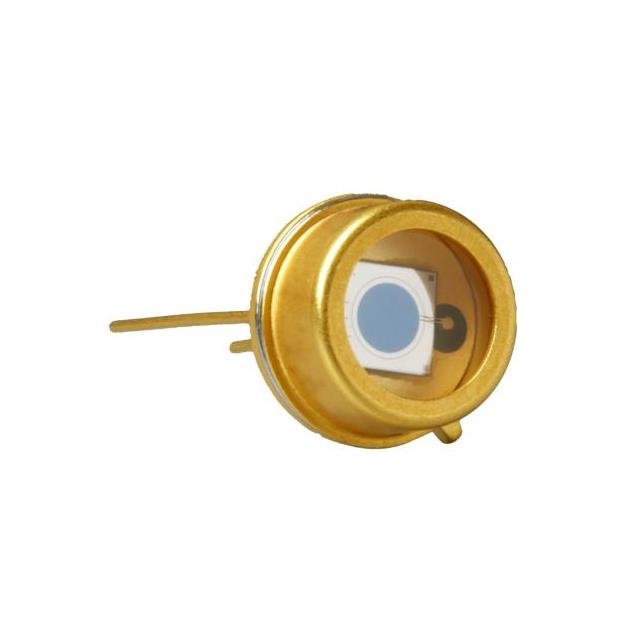

PIN-005D-254F

Active

OSI Optoelectronics, Inc.

SENSOR PHOTODIODE 254NM TO5

Search across all available documentation for this part.

Active

OSI Optoelectronics, Inc.

SENSOR PHOTODIODE 254NM TO5

Technical Specifications

Parameters and characteristics for this part

Specification	PIN-005D-254F

Active Area	5.7 mm²
Color - Enhanced	Ultraviolet (UV)
Diode Type	Planar Diffusion
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	Lens Top Metal Can, TO-5 Variant, 2 Leads
Responsivity @ nm	0.025 A/W

SENSOR PHOTODIODE 254NM TO5

Part	Responsivity @ nm	Color - Enhanced	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Active Area	Mounting Type
OSI Optoelectronics, Inc. PIN-005D-254F	0.025 A/W	Ultraviolet (UV)	2 Leads, Lens Top Metal Can, TO-5 Variant	70 °C	0 °C	Planar Diffusion	5.7 mm²	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 254nm 100ns TO-5 Variant, 2 Leads, Lens Top Metal Can
