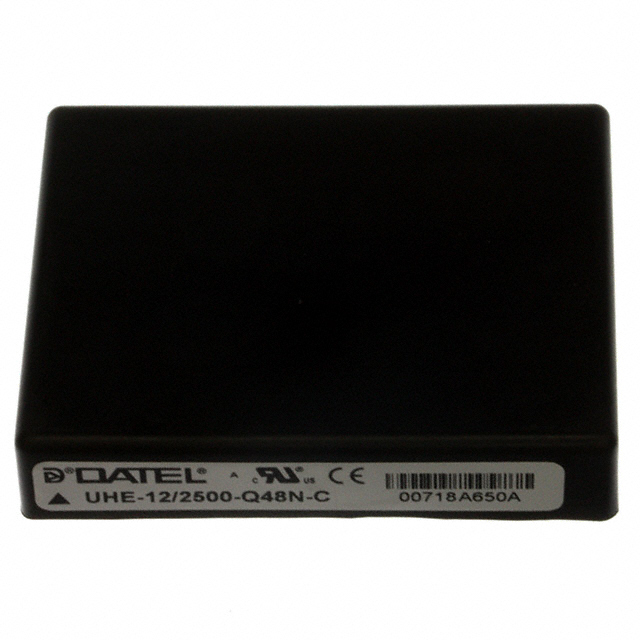

UHE-12/2500-Q48N-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UHE-12/2500-Q48N-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UHE-12/2500-Q48N-C | UHE-12 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active High, Enable, Active Low |
| Current - Output (Max) [Max] | 2.5 A | 2.5 A |
| Efficiency | 90.5 % | 87.5 - 92 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 9-DIP Module, 6 Leads | 9-DIP Module, 6 Leads |
| Power (Watts) | 30 W | 30 W |
| Size / Dimension [x] | 50.8 mm | 50.8 mm |
| Size / Dimension [y] | 40.64 mm | 40.64 mm |
| Size / Dimension [z] | 0.4 in | 0.4 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 18 - 75 V |
| Voltage - Input (Min) [Min] | 18 V | 9 - 36 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UHE-12 Series
DC DC CONVERTER 12V 30W
| Part | Features | Voltage - Output 1 | Voltage - Input (Max) [Max] | Applications | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Number of Outputs | Voltage - Input (Min) [Min] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Isolation | Current - Output (Max) [Max] | Control Features | Efficiency | Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UHE-12/2500-Q12-C | OCP, OTP, Remote On/Off, SCP, UVLO | 12 V | 36 V | ITE (Commercial) | 0.4 in | 50.8 mm | 40.64 mm | 1 | 9 V | 9-DIP Module, 6 Leads | 85 °C | -40 °C | Through Hole | 1.5 kV | 2.5 A | Active High, Enable | 87.5 % | Isolated Module | 30 W |
Murata Power Solutions Inc. UHE-12/2500-D12-C | OCP, OTP, Remote On/Off, SCP, UVLO | 12 V | 18 V | ITE (Commercial) | 0.4 in | 50.8 mm | 40.64 mm | 1 | 9 V | 9-DIP Module, 6 Leads | 85 °C | -40 °C | Through Hole | 1.5 kV | 2.5 A | Active High, Enable | 89 % | Isolated Module | 30 W |
Murata Power Solutions Inc. UHE-12/2500-Q48N-C | OCP, OTP, Remote On/Off, SCP, UVLO | 12 V | 75 V | ITE (Commercial) | 0.4 in | 50.8 mm | 40.64 mm | 1 | 18 V | 9-DIP Module, 6 Leads | 85 °C | -40 °C | Through Hole | 1.5 kV | 2.5 A | Active Low, Enable | 90.5 % | Isolated Module | 30 W |
Murata Power Solutions Inc. UHE-12/2500-D24-C | OCP, OTP, Remote On/Off, SCP, UVLO | 12 V | 36 V | ITE (Commercial) | 0.4 in | 50.8 mm | 40.64 mm | 1 | 18 V | 9-DIP Module, 6 Leads | 85 °C | -40 °C | Through Hole | 1.5 kV | 2.5 A | Active High, Enable | 92 % | Isolated Module | 30 W |
Murata Power Solutions Inc. UHE-12/2500-D48-C | OCP, OTP, Remote On/Off, SCP, UVLO | 12 V | 75 V | ITE (Commercial) | 0.4 in | 50.8 mm | 40.64 mm | 1 | 36 V | 9-DIP Module, 6 Leads | 85 °C | -40 °C | Through Hole | 1.5 kV | 2.5 A | Active High, Enable | 92 % | Isolated Module | 30 W |
Description
General part information
UHE-12 Series
Isolated Module DC DC Converter 1 Output 12V 2.5A 18V - 75V Input
