1628846
ActivePhoenix Contact

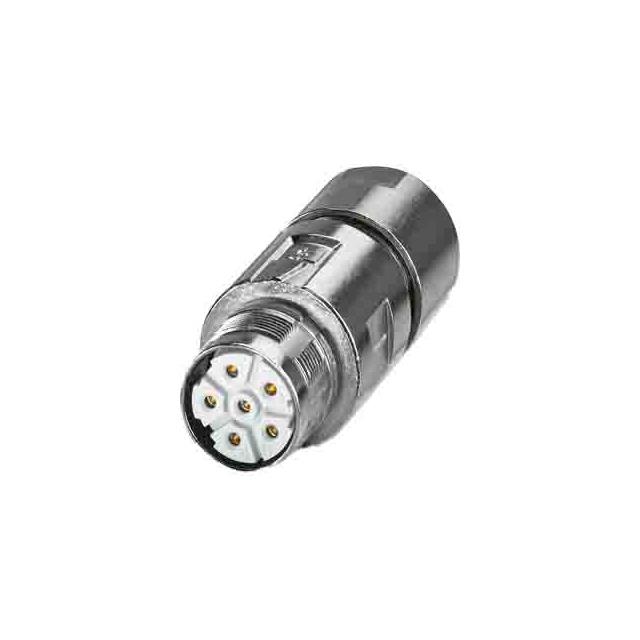

SENSOR CONNECTOR, M23, RCPT, 5+PE, CABLE ROHS COMPLIANT: YES
1628846
ActivePhoenix Contact
SENSOR CONNECTOR, M23, RCPT, 5+PE, CABLE ROHS COMPLIANT: YES
Description
General part information
1628846
6 (5 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
Technical Specifications
Parameters and characteristics for this part
| Specification | 1628846 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP68, IP66 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | PE |
| Primary Material | Metal |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23-6 |
| Shielding | Shielded |
| Type | For Female Sockets |
