VM0675520000G

Active

AMPHENOL ANYTEK

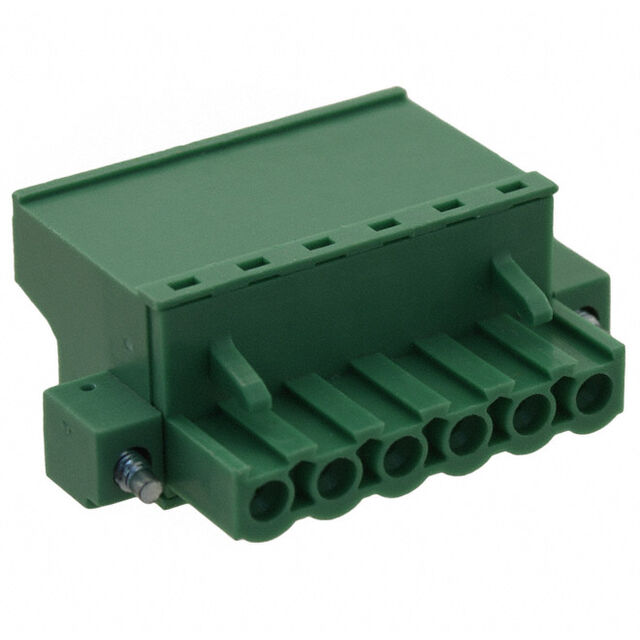

TERM BLOCK PLUG 6POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VM0675520000G

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 6POS STR 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2040	$ 1.81

Description

General part information

VM06 Series

6 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VM0675520000G	VM06 Series

Color	Green	Green, Gray, Black
Contact Material	Copper Alloy	Copper, Phosphor Bronze, Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	10 A	10 - 20 A
Features	Retention Latches (Non-Wire Side), Mating Flange	Mating Flange, Retention Latches (Non-Wire Side)
Housing Material	Thermoplastic Resin	Thermoplastic, Thermoplastic Resin
Insulation Height	1.083 in	0.465 - 1.083 in
Insulation Height	27.51 mm	11.8 - 27.51 mm
Insulation Height	-	0.587 in
Insulation Height	-	14.91 mm
Insulation Height	-	0.488 in
Insulation Height	-	12.4 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	3.5 - 7.62 mm
Pitch [x]	0.197 in	0.138 - 0.3 in
Positions Per Level	6	6
Screw Size	M2.5	M2.5, M2
Termination Style	Screw - Pressure Clip	Screw - Pressure Clip
Torque - Screw	0.4 Nm	0.2 - 0.4 Nm
Torque - Screw	3.5 Lb-In	1.7 - 3.5 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	22 AWG	22 - 28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 - 16 AWG
Wire Gauge or Range - mm˛ [Max]	2.5 mm˛	2.5 mm˛
Wire Gauge or Range - mm˛ [Min]	1 mm˛	0.34 - 1 mm˛
Wire Gauge or Range - mm²	-	0.34 mm²
Wire Gauge or Range - mm²	-	2.5 mm²
Wire Strip Length [Max]	7 mm	7 - 9 mm
Wire Strip Length [Min]	6 mm	6 - 8 mm

VM06 Series

TERM BLOCK PLUG 6POS STR 7.62MM

Part	Screw Size	Operating Temperature [Min]	Operating Temperature [Max]	Wire Strip Length [Min]	Wire Strip Length [Max]	Color	Current - UL	Mounting Type	Pitch [x]	Pitch [x]	Termination Style	Number of Positions	Type	Insulation Height [z]	Insulation Height [z]	Number of Levels	Voltage - UL	Positions Per Level	Contact Material	Housing Material	Material Flammability Rating	Contact Mating Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Torque - Screw	Torque - Screw	Insulation Height [custom]	Insulation Height [custom]	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Insulation Height	Insulation Height
AMPHENOL ANYTEK VM0605510000G	M2.5	-40 °C	115 °C	8 mm	9 mm	Green	20 A	Free Hanging (In-Line)	0.3 in	7.62 mm	Screw - Pressure Clip	6	Plug, Female Sockets	0.587 in	14.91 mm	1	300 V	6	Copper	Thermoplastic	UL94 V-0	Tin	12 AWG	22 AWG	0.4 Nm	3.5 Lb-In
AMPHENOL ANYTEK VM0615820000G	M2	-40 °C	115 °C	6 mm	7 mm	Gray	10 A	Free Hanging (In-Line)	0.138 in	3.5 mm	Screw - Pressure Clip	6	Plug, Female Sockets			1	300 V	6	Phosphor Bronze	Thermoplastic	UL94 V-0	Tin	16 AWG	28 AWG	0.2 Nm	1.7 Lb-In	0.488 in	12.4 mm	Mating Flange
AMPHENOL ANYTEK VM0675820000G	M2.5	-40 °C	115 °C	6 mm	7 mm	Gray	20 A	Free Hanging (In-Line)	0.197 in	5 mm	Screw - Pressure Clip	6	Plug, Female Sockets			1	300 V	6	Copper	Thermoplastic	UL94 V-0	Tin	12 AWG	22 AWG	0.4 Nm	3.5 Lb-In			Mating Flange, Retention Latches (Non-Wire Side)	0.34 mm²	2.5 mm²	0.591 in	15 mm
AMPHENOL ANYTEK VM06A5010000G	M2.5	-40 °C	115 °C	6 mm	7 mm	Black	20 A	Free Hanging (In-Line)	0.295 in	7.5 mm	Screw - Pressure Clip	6	Plug, Female Sockets	0.587 in	14.91 mm	1	300 V	6	Copper	Thermoplastic	UL94 V-0	Tin	12 AWG	22 AWG	0.4 Nm	3.5 Lb-In				0.34 mm²	2.5 mm²
AMPHENOL ANYTEK VM0605530000G	M2.5	-40 °C	115 °C	8 mm	9 mm	Green	20 A	Free Hanging (In-Line)	0.3 in	7.62 mm	Screw - Pressure Clip	6	Plug, Female Sockets	0.587 in	14.91 mm	1	300 V	6	Copper	Thermoplastic	UL94 V-0	Tin	12 AWG	22 AWG	0.4 Nm	3.5 Lb-In			Mating Flange, Retention Latches (Non-Wire Side)
AMPHENOL ANYTEK VM06A5510000G	M2.5	-40 °C	115 °C	6 mm	7 mm	Green	20 A	Free Hanging (In-Line)	0.295 in	7.5 mm	Screw - Pressure Clip	6	Plug, Female Sockets	0.587 in	14.91 mm	1	300 V	6	Copper	Thermoplastic	UL94 V-0	Tin	12 AWG	22 AWG	0.4 Nm	3.5 Lb-In				0.34 mm²	2.5 mm²
AMPHENOL ANYTEK VM0655010000G	M2.5	-40 °C	115 °C	6 mm	7 mm	Black	20 A	Free Hanging (In-Line)	0.2 in	5.08 mm	Screw - Pressure Clip	6	Plug, Female Sockets	0.587 in	14.91 mm	1	300 V	6	Copper	Thermoplastic	UL94 V-0	Tin	12 AWG	22 AWG	0.4 Nm	3.5 Lb-In				0.34 mm²	2.5 mm²
AMPHENOL ANYTEK VM0655830000G	M2.5	-40 °C	115 °C	6 mm	7 mm	Gray	20 A	Free Hanging (In-Line)	0.2 in	5.08 mm	Screw - Pressure Clip	6	Plug, Female Sockets	0.587 in	14.91 mm	1	300 V	6	Copper	Thermoplastic	UL94 V-0	Tin	12 AWG	22 AWG	0.4 Nm	3.5 Lb-In			Mating Flange, Retention Latches (Non-Wire Side)	0.34 mm²	2.5 mm²
AMPHENOL ANYTEK VM0655500000G	M2.5	-40 °C	115 °C	6 mm	7 mm	Green	20 A	Free Hanging (In-Line)	0.2 in	5.08 mm	Screw - Pressure Clip	6	Plug, Female Sockets			1	300 V	6	Copper	Thermoplastic	UL94 V-0	Tin	12 AWG	22 AWG	0.4 Nm	3.5 Lb-In				0.34 mm²	2.5 mm²	0.591 in	15 mm
AMPHENOL ANYTEK VM0675800000G	M2.5	-40 °C	115 °C	8 mm	9 mm	Gray	20 A	Free Hanging (In-Line)	0.197 in	5 mm	Screw - Pressure Clip	6	Plug, Female Sockets			1	300 V	6	Copper	Thermoplastic	UL94 V-0	Tin	12 AWG	22 AWG	0.4 Nm	3.5 Lb-In				0.34 mm²	2.5 mm²	0.591 in	15 mm
