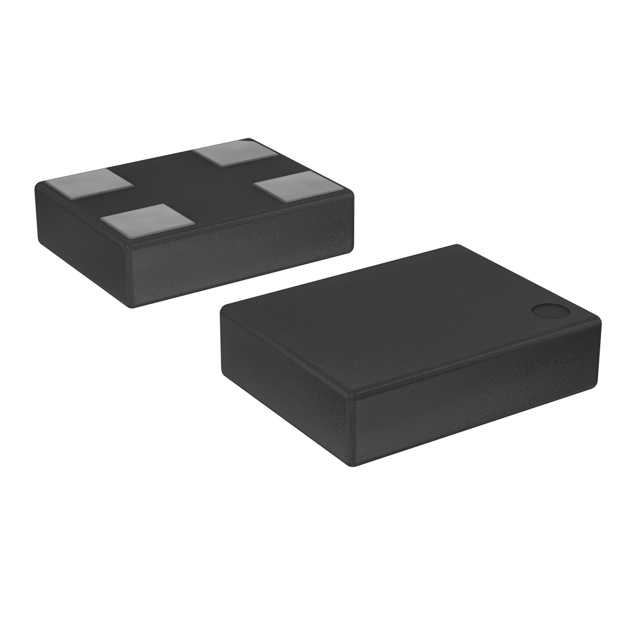

DSC6112CI2A-PROGRAMMABLE
ObsoleteMicrochip Technology
MEMS OSC PROG XO CMOS 1.71V
DSC6112CI2A-PROGRAMMABLE
ObsoleteMicrochip Technology
MEMS OSC PROG XO CMOS 1.71V
Description
General part information
DSC6112CI2A-PROGRAMMABLE
XO (Standard) CMOS 1 MHz ~ 100 MHz Programmable Oscillator 1.71V ~ 3.63V Standby 4-VDFN
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC6112CI2A-PROGRAMMABLE |
|---|---|
| Available Frequency Range (Maximum) | 100 MHz |
| Available Frequency Range (Minimum) | 1 MHz |
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) | 12 µA |
| Current - Supply (Max) | 3 mA |
| Frequency Stability (Total) | 25 ppm |
| Function | Standby |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-VDFN |
| Ratings | AEC-Q100 |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.63 V |
| Voltage - Supply (Minimum) | 1.71 V |
