6282-3PG-321

Active

Conxall/Switchcraft

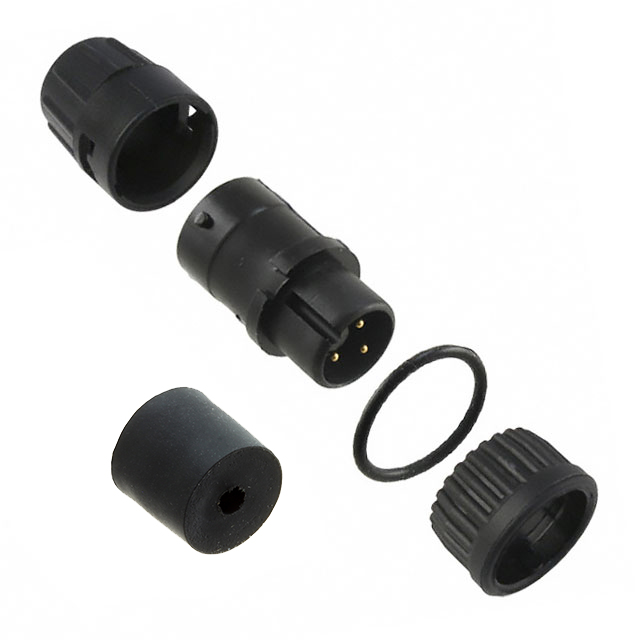

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6282-3PG-321

Active

Conxall/Switchcraft

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.86
		10	$ 6.17
		25	$ 5.81
		50	$ 5.67
		100	$ 5.52
		300	$ 5.25

Description

General part information

6282-3PG Series

3 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6282-3PG-321	6282-3PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Cable Opening	-	5.33 - 6.35 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [Max] [diameter]	5.84 mm	5.84 mm
Cable Opening [Max] [diameter]	0.23 in	0.21 - 0.25 in
Cable Opening [Min] [diameter]	5.33 mm	4.83 - 5.59 mm
Cable Opening [Min] [diameter]	0.21 in	0.19 - 0.22 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

6282-3PG Series

CONN PLUG MALE 3P GOLD SLDR CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Applications	Features	Backshell Material, Plating	Contact Finish - Mating	Primary Material	Voltage Rating	Color	Mounting Type	Shielding	Orientation	Ingress Protection	Connector Type	Contact Material	Fastening Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 6282-3PG-315	-40 °C	115 °C	0.15 in, 0.17 in	3.81 mm, 4.32 mm	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Nylon, Polyamide (PA)	Gold	Plastic	600 V	Black	Free Hanging (In-Line)	Unshielded	Keyed	Weathertight	Male Pins, Plug	Brass	Bayonet Lock
Conxall/Switchcraft 6282-3PG-519	-40 °C	115 °C			Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Nylon, Polyamide (PA)	Gold	Plastic	600 V	Black	Free Hanging (In-Line)	Unshielded	Keyed	Weathertight	Male Pins, Plug	Brass	Bayonet Lock	0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6282-3PG-522	-40 °C	115 °C			Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Nylon, Polyamide (PA)	Gold	Plastic	600 V	Black	Free Hanging (In-Line)	Unshielded	Keyed	Weathertight	Male Pins, Plug	Brass	Bayonet Lock	0.25 in	0.22 in	5.59 mm	6.35 mm
Conxall/Switchcraft 6282-3PG-321	-40 °C	115 °C			Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Nylon, Polyamide (PA)	Gold	Plastic	600 V	Black	Free Hanging (In-Line)	Unshielded	Keyed	Weathertight	Male Pins, Plug	Brass	Bayonet Lock	0.23 in	0.21 in	5.33 mm		5.84 mm
Conxall/Switchcraft 6282-3PG-318	-40 °C	115 °C			Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Nylon, Polyamide (PA)	Gold	Plastic	600 V	Black	Free Hanging (In-Line)	Unshielded	Keyed	Weathertight	Male Pins, Plug	Brass	Bayonet Lock						4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6282-3PG-513	-40 °C	115 °C	0.13 in, 0.15 in	3.3 mm, 3.81 mm	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Nylon, Polyamide (PA)	Gold	Plastic	600 V	Black	Free Hanging (In-Line)	Unshielded	Keyed	Weathertight	Male Pins, Plug	Brass	Bayonet Lock
