610-1"X72YD
Active3M

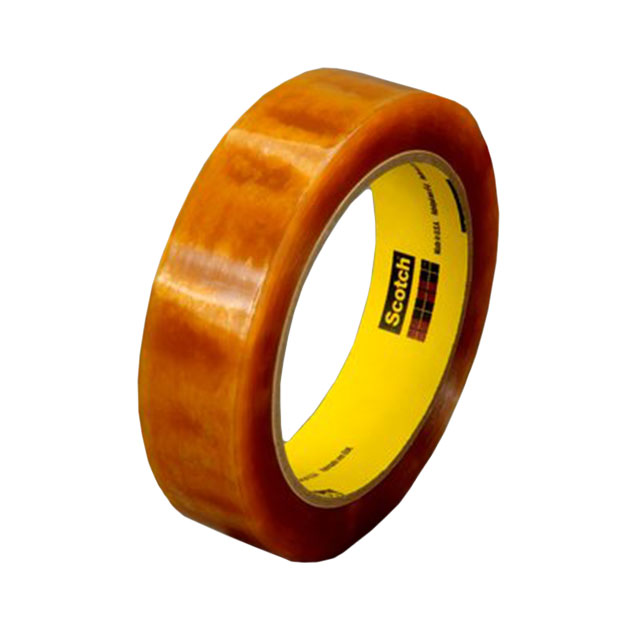

TAPE FILM CLEAR 1"X72YDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDate Code Decipher
610-1"X72YD
Active3M
TAPE FILM CLEAR 1"X72YDS
Deep-Dive with AI
DocumentsDate Code Decipher
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 610-1"X72YD | 610 Series |
|---|---|---|
| Backing, Carrier | Cellophane | Cellophane |
| Color | Clear | Clear |
| Length | 66 m | 66 m |
| Length | 216 ft | 216 ft |
| Length | 72 yd | 72 yd |
| Shelf Life | 18 Months | 18 Months |
| Shelf Life Start | Date of Manufacture | Date of Manufacture |
| Storage/Refrigeration Temperature | 70 °F | 70 °F |
| Storage/Refrigeration Temperature | 21 °C | 21 °C |
| Tape Type | Film | Film |
| Temperature Range | 300 °F | 300 °F |
| Temperature Range | 149 °C | 149 °C |
| Thickness | 2.3 mils | 2.3 mils |
| Thickness | 0.058 mm | 0.058 mm |
| Thickness | 0.0023 in | 0.0023 in |
| Thickness - Adhesive | 0.0009 " | 0.0009 " |
| Thickness - Adhesive | 0.9 mils | 0.9 mils |
| Thickness - Adhesive | 0.023 mm | 0.023 mm |
| Thickness - Backing, Carrier | 0.0014 in | 0.0014 in |
| Thickness - Backing, Carrier | 1.4 mils | 1.4 mils |
| Thickness - Backing, Carrier | 0.036 mm | 0.036 mm |
| Usage | General Purpose | General Purpose |
| Width [x] | 25.4 mm | 25.4 mm |
| Width [x] | 1 in | 1 in |
610 Series
SAFETY-WALK SLIP-RESISTANT GENER
| Part | Storage/Refrigeration Temperature | Storage/Refrigeration Temperature | Shelf Life | Shelf Life Start | Tape Type | Backing, Carrier | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Width [x] | Width [x] | Thickness | Thickness | Thickness | Color | Thickness - Adhesive | Thickness - Adhesive | Thickness - Adhesive | Temperature Range | Temperature Range | Length | Length | Length | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
70 °F | 21 °C | 18 Months | Date of Manufacture | |||||||||||||||||||||
70 °F | 21 °C | 18 Months | Date of Manufacture | |||||||||||||||||||||
70 °F | 21 °C | 18 Months | Date of Manufacture | Film | Cellophane | 0.0014 in | 1.4 mils | 0.036 mm | 25.4 mm | 1 in | 2.3 mils | 0.058 mm | 0.0023 in | Clear | 0.0009 " | 0.9 mils | 0.023 mm | 300 °F | 149 °C | 66 m | 216 ft | 72 yd | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
610 Series
Film Tape Pressure Sensitive Adhesive (PSA) Adhesive Clear 1.00" (25.40mm) X 216' (66.0m) 72 yds
Documents
Technical documentation and resources
