SAN.M04.GLA.5GZ
ActiveLEMO

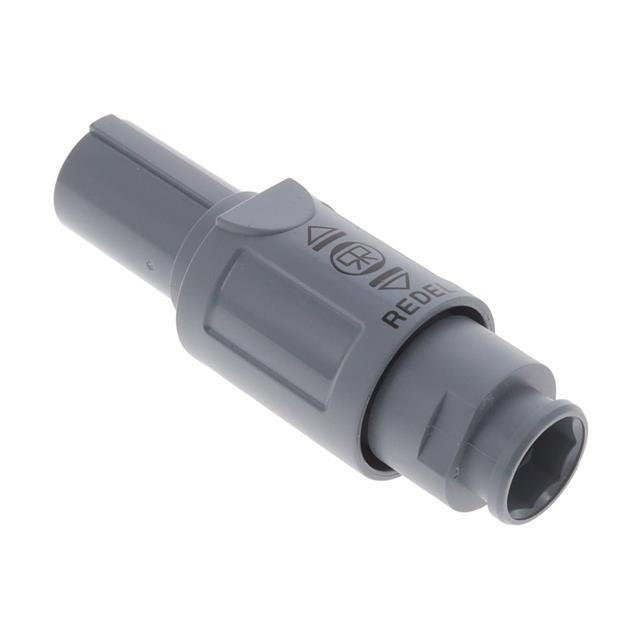

CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SAN.M04.GLA.5GZ
ActiveLEMO
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SAN.M04.GLA.5GZ | SAN.M04 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Sulfone | Sulfone |
| Cable Opening | - | 0.209 - 0.256 in |
| Cable Opening | - | 5.3 - 6.5 mm |
| Cable Opening [Max] [custom] | 0.205 in | 0.205 in |
| Cable Opening [Max] [custom] | 5.2 mm | 5.2 mm |
| Cable Opening [Min] [custom] | 0.157 in | 0.157 in |
| Cable Opening [Min] [custom] | 4 mm | 4 mm |
| Color | Gray | Gray |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 11.5 A | 11.5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 170 °C | 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | N | N |
| Primary Material | Plastic | Plastic |
| Shell Material | Sulfone | Sulfone |
| Shell Size - Insert | M04 | M04 |
| Shielding | Unshielded | Unshielded |
SAN.M04 Series
CONN PLUG MALE 4P GOLD SLDR CUP
| Part | Number of Positions | Primary Material | Applications | Contact Finish - Mating | Insert Material | Current Rating (Amps) | Cable Opening [custom] | Cable Opening [custom] | Backshell Material, Plating | Ingress Protection | Connector Type | Fastening Type | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Shielding | Color | Mounting Type | Features | Shell Size - Insert | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO SAN.M04.GLA.6G | 4 | Plastic | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | 11.5 A | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | Sulfone | IP50 | Male Pins, Plug | Push-Pull | Sulfone | -50 °C | 170 °C | N | Unshielded | Gray | Free Hanging (In-Line) | Backshell | M04 | ||||
LEMO SAN.M04.GLA.5GZ | 4 | Plastic | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | 11.5 A | Sulfone | IP50 | Male Pins, Plug | Push-Pull | Sulfone | -50 °C | 170 °C | N | Unshielded | Gray | Free Hanging (In-Line) | Backshell | M04 | 0.157 in | 0.205 in | 4 mm | 5.2 mm | ||
LEMO SAN.M04.GLA.6GZ | 4 | Plastic | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | 11.5 A | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | Sulfone | IP50 | Male Pins, Plug | Push-Pull | Sulfone | -50 °C | 170 °C | N | Unshielded | Gray | Free Hanging (In-Line) | Backshell | M04 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.06 | |
Description
General part information
SAN.M04 Series
4 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
