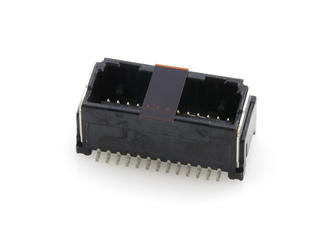

5054332691 - 1.25mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Vertical, Surface Mount, 0.10µm Gold Plating, Positive Lock, 26 Circuits, with Pick-and-Place Tape, Black

5054332691

Active
Molex

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, DUAL ROW, VERTICAL, SURFACE MOUNT, 0.10ΜM GOLD PLATING, POSITIVE LOCK, 26 CIRCUITS, WITH PICK-AND-PLACE TAPE, BLACK

Find alt
5054332691 - 1.25mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Vertical, Surface Mount, 0.10µm Gold Plating, Positive Lock, 26 Circuits, with Pick-and-Place Tape, Black

5054332691

Active
Molex

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, DUAL ROW, VERTICAL, SURFACE MOUNT, 0.10ΜM GOLD PLATING, POSITIVE LOCK, 26 CIRCUITS, WITH PICK-AND-PLACE TAPE, BLACK

Find alt

Description

General part information

505433 Series

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, DUAL ROW, VERTICAL, SURFACE MOUNT, 0.10ΜM GOLD PLATING, POSITIVE LOCK, 26 CIRCUITS, WITH PICK-AND-PLACE TAPE, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification5054332691
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating3.94 µin
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Fastening TypeLatch Holder
FeaturesSolder Retention, Pick and Place
Insulation ColorBlack
Insulation Height0.285 in
Insulation MaterialNylon, Polyamide (PA)
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions26
Number of Positions LoadedAll
Number of Rows2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.049 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating50 V
Voltage Rating (Type)DC
