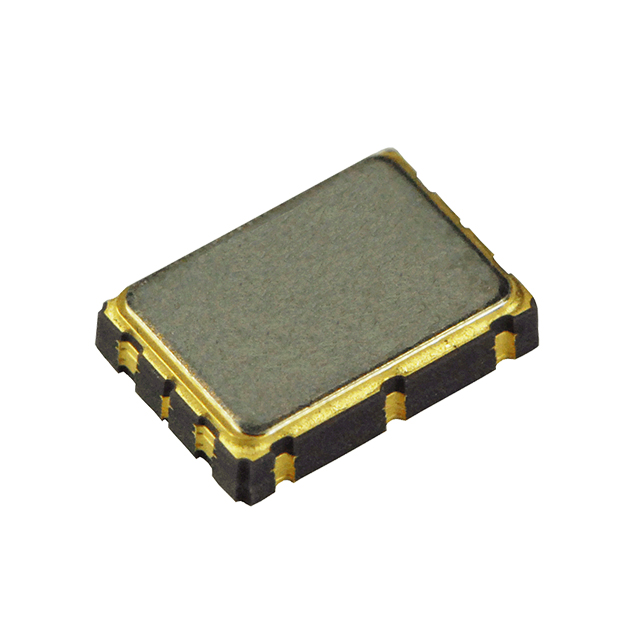

SG-8503CA-QRKZ
XO (Standard) LVPECL 50 MHz ~ 800 MHz Programmable Oscillator 2.5V ~ 3.3V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-8503CA-QRKZ |
|---|---|
| Available Frequency Range (Maximum) | 800 MHz |
| Available Frequency Range (Minimum) | 50 MHz |
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 40 mA |
| Current - Supply (Max) | 90 mA |
| Frequency Stability (Total) | 31.5 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.067 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVPECL |
| Package / Case | No Lead, 6-SMD |
| Package Length | 7 mm |
| Package Name | 6-SMD |
| Package Width | 5 mm |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.3 V |
| Voltage - Supply (Minimum) | 2.5 V |
