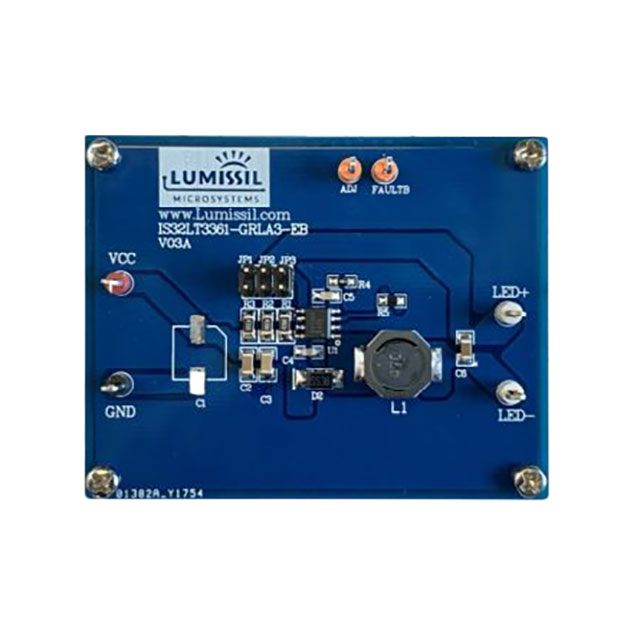

IS32LT3361-GRLA3-EB

Active

Lumissil Microsystems

EVAL BOARD FOR IS32LT3361-GRLA3

Search across all available documentation for this part.

Active

Lumissil Microsystems

EVAL BOARD FOR IS32LT3361-GRLA3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS32LT3361-GRLA3-EB	IS32LT3361 Series

Applications	-	Lighting
Current - Output / Channel [custom]	1.3 A	1.3 A
Dimming	-	PWM
Features	Dimmable	Dimmable
Frequency	-	1 MHz
Grade	-	Automotive
Internal Switch(s)	-	True
Mounting Type	-	Surface Mount
Number of Outputs	-	1
Operating Temperature	-	-40 °C
Operating Temperature	-	125 ¯C
Outputs and Type	1 Non-Isolated Output	1 Non-Isolated Output
Package / Case	-	0.154 in
Package / Case	-	8-SOIC
Package / Case	-	3.9 mm
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	8-SOP-EP
Topology	-	Step-Down (Buck)
Type	-	DC DC Regulator
Utilized IC / Part	IS32LT3361	IS32LT3361
Voltage - Input [Max]	40 V	40 V
Voltage - Input [Min]	6 V	6 V
Voltage - Output	-	2.5 V
Voltage - Output	-	0.81 V
Voltage - Supply (Max)	-	40 V
Voltage - Supply (Min)	-	6 V

IC LED DRVR RGLTR PWM 1.3A 8SOP

Part	Voltage - Output [Max]	Voltage - Output [Min]	Applications	Package / Case	Package / Case	Package / Case	Voltage - Supply (Max) [Max]	Topology	Current - Output / Channel [custom]	Frequency	Grade	Internal Switch(s)	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Type	Number of Outputs	Voltage - Supply (Min) [Min]	Supplier Device Package	Mounting Type	Supplied Contents	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Features
Lumissil Microsystems IS32LT3361-GRLA3-TR	2.5 V	0.81 V	Lighting	0.154 in	8-SOIC	3.9 mm	40 V	Step-Down (Buck)	1.3 A	1 MHz	Automotive		-40 °C	125 ¯C	PWM	DC DC Regulator	1	6 V	8-SOP-EP	Surface Mount
Lumissil Microsystems IS32LT3361-GRLA3-EB									1.3 A												Board(s)	1 Non-Isolated Output	6 V	40 V	IS32LT3361	Dimmable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.25

General part information

IS32LT3361 - 1 Non-Isolated Output pval(5) LED Driver Evaluation Board
