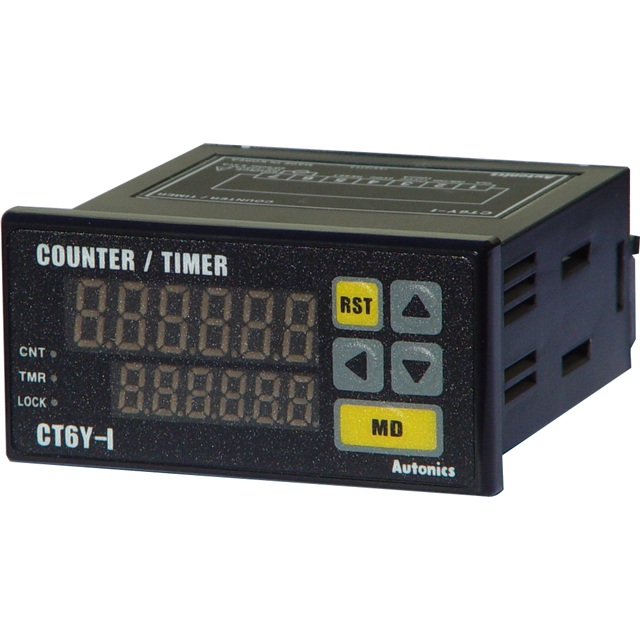

CT6Y-I4
ActiveAUTONICS
COUNTER TIMER 100-240VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CT6Y-I4
ActiveAUTONICS
COUNTER TIMER 100-240VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CT6Y-I4 | CT6Y Series |
|---|---|---|
| Count Rate | Multiple | Multiple |
| Display Characters - Height | 0.374 in, 0.275 in | 0.275 - 0.374 in |
| Display Type | LED - Green, Red Characters | LED - Green, Red Characters |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Input Type | No Voltage, Voltage | No Voltage, Voltage |
| Number of Characters Per Row | 6 | 6 |
| Number of Characters Per Row | 6 | 6 |
| Operating Mode | Up, Down | Up, Down |
| Output Type | - | Solid State, Relay (2), Relay, Solid State |
| Panel Cutout Dimensions [x] | 68 mm | 68 mm |
| Panel Cutout Dimensions [y] | 31.5 mm | 31.5 mm |
| Reset | External, Front Panel | External, Front Panel |
| Termination Style | Screw Terminal | Screw Terminal |
| Time Format | Multiple | Multiple |
| Type | Tachometer, Timer, Preset, Batch, Totalizer | Tachometer, Timer, Preset, Batch, Totalizer |
| Voltage - Supply | - | 24 VAC |
| Voltage - Supply [Max] | 240 VAC | 48 - 240 VAC |
| Voltage - Supply [Min] | 100 VAC | 24 - 100 VAC |
CT6Y Series
COUNTER TIMER 100-240VAC
| Part | Operating Mode | Display Type | Ingress Protection | Input Type | Time Format | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Display Characters - Height | Reset | Number of Characters Per Row | Number of Characters Per Row | Termination Style | Count Rate | Output Type | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AUTONICS CT6Y-2P4 | Down, Up | LED - Green, Red Characters | IP65 - Dust Tight, Water Resistant | No Voltage, Voltage | Multiple | 68 mm | 31.5 mm | Batch, Preset, Tachometer, Timer, Totalizer | 100 VAC | 240 VAC | 0.275 in, 0.374 in | External, Front Panel | 6 | 6 | Screw Terminal | Multiple | Relay (2), Solid State | |
AUTONICS CT6Y-I2 | Down, Up | LED - Green, Red Characters | IP65 - Dust Tight, Water Resistant | No Voltage, Voltage | Multiple | 68 mm | 31.5 mm | Batch, Preset, Tachometer, Timer, Totalizer | 24 V | 48 V | 0.275 in, 0.374 in | External, Front Panel | 6 | 6 | Screw Terminal | Multiple | 24 VAC | |
AUTONICS CT6Y-1P4 | Down, Up | LED - Green, Red Characters | IP65 - Dust Tight, Water Resistant | No Voltage, Voltage | Multiple | 68 mm | 31.5 mm | Batch, Preset, Tachometer, Timer, Totalizer | 100 VAC | 240 VAC | 0.275 in, 0.374 in | External, Front Panel | 6 | 6 | Screw Terminal | Multiple | Relay, Solid State | |
AUTONICS CT6Y-2P4T | Down, Up | LED - Green, Red Characters | IP65 - Dust Tight, Water Resistant | No Voltage, Voltage | Multiple | 68 mm | 31.5 mm | Batch, Preset, Tachometer, Timer, Totalizer | 100 VAC | 240 VAC | 0.275 in, 0.374 in | External, Front Panel | 6 | 6 | Screw Terminal | Multiple | Relay (2), Solid State | |
AUTONICS CT6Y-I4 | Down, Up | LED - Green, Red Characters | IP65 - Dust Tight, Water Resistant | No Voltage, Voltage | Multiple | 68 mm | 31.5 mm | Batch, Preset, Tachometer, Timer, Totalizer | 100 VAC | 240 VAC | 0.275 in, 0.374 in | External, Front Panel | 6 | 6 | Screw Terminal | Multiple |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 119.00 | |
Description
General part information
CT6Y Series
Batch, Preset, Tachometer, Timer, Totalizer 100 ~ 240VAC Panel Mount
