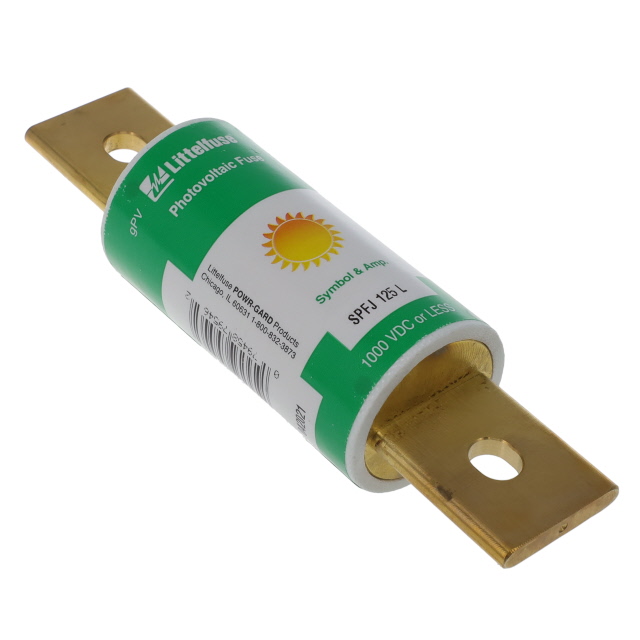

SPFJ125.XXL
125A 600 VAC 1 kVDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SPFJ125.XXL |
|---|---|
| Applications | Solar (Photovoltaic) |
| Approval Agency | CE, UL |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 20 kA |
| Current Rating | 125 A |
| DC Cold Resistance | 0.964 mOhms |
| Fuse Type | Cartridge |
| Melting I²t | 6863 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 1.5 in |
| Size / Dimension Length | 3.012 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 1 kV |
