EHDB9FFB

Active

Switchcraft Inc.

DSUB GENDER CHANGER DB9F DB9F

Search across all available documentation for this part.

Active

Switchcraft Inc.

DSUB GENDER CHANGER DB9F DB9F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EHDB9FFB	EHDB9F Series

Connector Style	Gender Changer	Gender Changer
Contact Finish	Gold	Gold
Convert From (Adapter End)	D-Sub, 9 Pin Female	D-Sub, 9 Pin Female
Housing Color	Yellow	Yellow

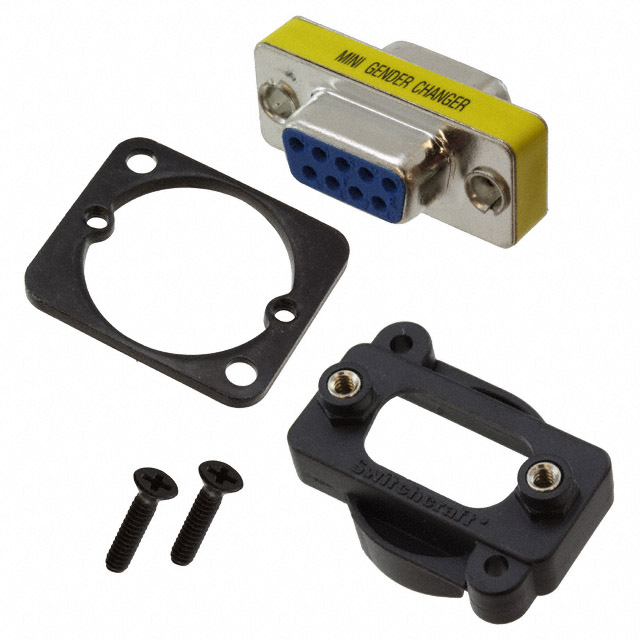

Includes	2 Screws, 1 Connector, 1 Flange, 1 Housing	2 Screws, 1 Connector, 1 Flange, 1 Housing
Mounting Type	Panel Mount, Square Flange	Panel Mount, Square Flange
Number of Rows	2	2
Shell Material, Finish	Nickel Silver, Black Chrome Plated	Nickel Silver, Black Chrome Plated, Tin Plated

DSUB GENDER CHANGER DB9F DB9F

Part	Shell Material, Finish	Includes	Convert From (Adapter End)	Number of Rows	Mounting Type	Connector Style	Housing Color	Contact Finish
Switchcraft Inc. EHDB9FFB	Black Chrome Plated, Nickel Silver	1 Connector, 1 Flange, 1 Housing, 2 Screws	D-Sub, 9 Pin Female	2	Panel Mount, Square Flange	Gender Changer	Yellow	Gold
Switchcraft Inc. EHDB9FF	Nickel Silver, Tin Plated	1 Connector, 1 Flange, 1 Housing, 2 Screws	D-Sub, 9 Pin Female	2	Panel Mount, Square Flange	Gender Changer	Yellow	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Connector D-Sub, 9 Pin Female To D-Sub, 9 Pin Female Panel Mount, Square Flange
