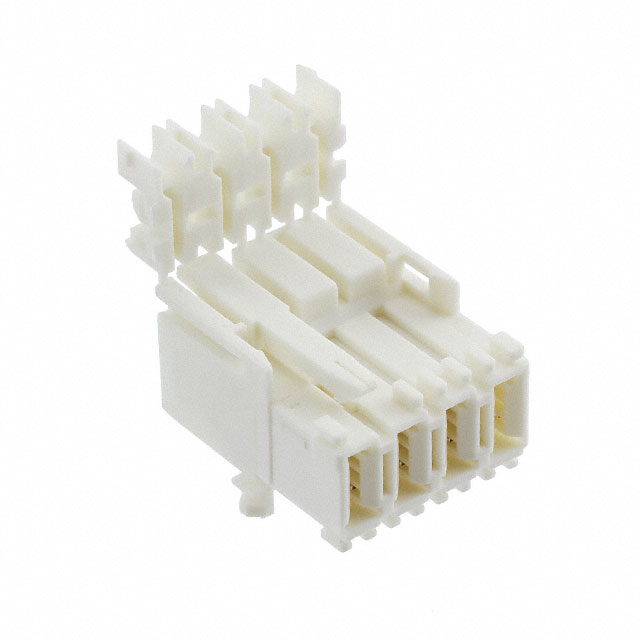

2-1534073-4

Active

TE Connectivity Raychem Cable Protection

1-4 POS. MULTIFIT MK2 ASSY

Deep-Dive with AI

DocumentsDatasheet AMP multifitting MK II +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1534073-4

Cable Termination	IDC
Color	Natural
Connector Type	Receptacle
Contact Finish	Tin
Contact Type	Blade Pin
Fastening Type	Latch Lock
Features	Dual Wire Exit
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	1
Pitch [x]	5 mm
Pitch [x]	0.197 in
Wire Type	Discrete

RAST 5 IDC Connectors Series

Power to the Board MONO-SHAPE MK I TAB CONN ASSY

...

Part	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Insulation Material	Connector Type	Contact Termination	Note	Mounting Type	Fastening Type	Color	Contact Shape	Applications	Contact Finish - Post	Voltage Rating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Number of Positions Loaded	Material Flammability Rating	Features	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Style	Insulation Height	Insulation Height	Contact Finish	Cable Termination	Wire Type	Contact Length - Post	Contact Length - Post	Insulation Color	Tab Length [x]	Tab Length [x]	Length - Overall [x]	Length - Overall [x]	Insulation	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Gender	Tab Width	Tab Width
TE Connectivity Raychem Cable Protection 6-1241961-8	1	Female Socket	-40 °C	105 ░C	5 mm	0.197 in	Polyamide (PA6) Nylon 6	Receptacle	Crimp	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	Natural
TE Connectivity Raychem Cable Protection 5-1969352-2	1	Tab	-40 °C	120 °C			Polyamide (PA66) Nylon 6/6	Header			Through Hole Right Angle	Latch Holder		Rectangular	General Purpose	Tin	250 VAC	2	150 Áin	3.81 Ám	Brass	Solder	All	UL94 V-2	Glow Wire Compliant	5 mm	0.197 "	150 Áin	3.81 Ám	Shrouded - 4 Wall	Board to Cable/Wire	0.656 in	16.65 mm
TE Connectivity Raychem Cable Protection 8-1703060-6	1	Female Socket	-40 °C	105 ░C	5 mm	0.197 in	Polyamide (PA66) Nylon 6/6	Receptacle	Crimp	Contacts Not Included	Free Hanging (In-Line)	Locking Ramp	Natural					6
TE Connectivity Raychem Cable Protection 2-1534073-4	1	Blade Pin			5 mm	0.197 in		Receptacle			Free Hanging (In-Line)	Latch Lock	Natural					4							Dual Wire Exit									Tin	IDC	Discrete
TE Connectivity Raychem Cable Protection 1241961-6	1	Female Socket	-40 °C	105 ░C	5 mm	0.197 in	Polyamide (PA6) Nylon 6	Receptacle	Crimp	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	Natural
TE Connectivity Raychem Cable Protection 5-1971845-8	1	Tab	-40 °C	120 °C			Nylon Polyamide (PA)	Header			Through Hole	Latch Holder		Rectangular	General Purpose	Tin	250 VAC	8			Copper Alloy	Solder	All	UL94 V-0	Board Guide Glow Wire Compliant	5 mm	0.197 "			Shrouded - 4 Wall	Board to Cable/Wire	0.504 in	12.8 mm				3.5 mm	0.138 in	Natural
TE Connectivity Raychem Cable Protection 4-969484-2	1	Female Socket			5 mm	0.197 in	Polyamide (PA66) Nylon 6/6	Receptacle	Crimp	Contacts Not Included	Free Hanging (In-Line)	Latch Lock	Natural					2
TE Connectivity Raychem Cable Protection 7-1971845-3	1	Tab	-40 °C	120 °C			Nylon Polyamide (PA)	Header			Through Hole	Latch Holder		Rectangular	General Purpose	Tin	250 VAC				Copper Alloy	Solder	All	UL94 V-0	Board Guide Glow Wire Compliant	5 mm	0.197 "			Shrouded - 4 Wall	Board to Cable/Wire	0.504 in	12.8 mm				3.5 mm	0.138 in	Natural
TE Connectivity Raychem Cable Protection 2232045-2	1	Tab	-40 °C	120 °C			Nylon Polyamide (PA)	Header			Through Hole	Latch Holder		Rectangular	General Purpose	Tin	250 VAC	2			Copper Alloy	Solder	All	UL94 V-0	Board Guide Glow Wire Compliant	5 mm	0.197 "			Shrouded - 4 Wall	Board to Cable/Wire	0.504 in	12.8 mm				3.5 mm	0.138 in	Natural
TE Connectivity Raychem Cable Protection 1217378-1											Free Hanging (In-Line)										Brass	Crimp																		7.44 mm	0.293 in	0.771 in	19.58 mm	Non-Insulated	0.032 in	0.81 mm	22 AWG	17.5 AWG	Standard	2.79 mm	0.11 "	1.52 mm	0.06 in	Female	6.35 mm	0.25 in
