16-00242

Obsolete

Tensility International Corp

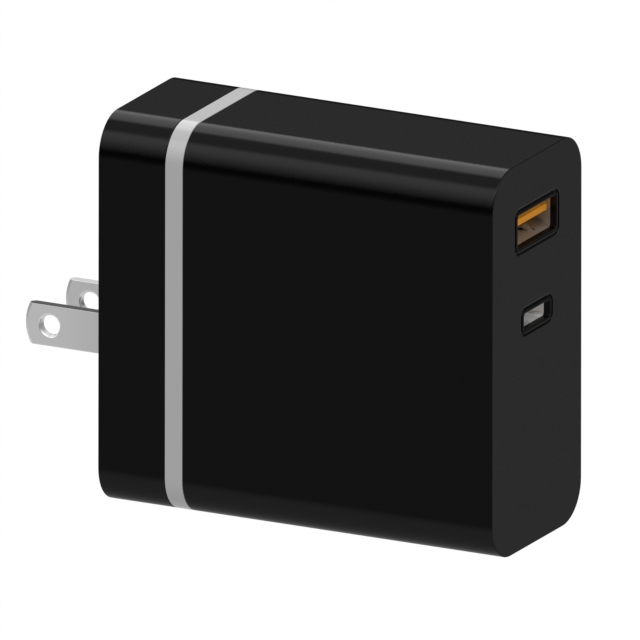

AC/DC WALL MNT ADPTR 5V-20V 42W

Search across all available documentation for this part.

Obsolete

Tensility International Corp

AC/DC WALL MNT ADPTR 5V-20V 42W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	16-00242	16-002 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cULus, FCC	cULus, FCC
Current - Output (Max)	-	1.5 - 3 A
Current - Output (Max) [Max]	2.5 A, 3 A, 1.5 A, 2 A	1.5 - 3 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	NEMA 1-15P	NEMA 1-15P
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption	100 mW	100 mW
Operating Temperature [custom]	35 °C, 0 °C	0 - 35 °C
Output Connector	USB A, C Receptacles	USB C Receptacle, USB A, C Receptacles
Power (Watts)	42 W	18 - 42 W
Region Utilized	North America	North America
Size / Dimension	60 mm	60 mm
Size / Dimension	65.5 mm	65.5 mm
Size / Dimension	29 mm	29 mm
Size / Dimension	-	44.1 mm
Size / Dimension	-	29 mm
Size / Dimension	-	60 mm
Size / Dimension [x]	2.58 "	2.36 - 2.58 in
Size / Dimension [y]	2.36 "	1.74 - 2.36 "
Size / Dimension [z]	1.14 "	1.14 "
Standard Number	62368-1	62368-1
Voltage - Input [Max]	240 VAC	240 VAC
Voltage - Input [Min]	100 VAC	100 VAC
Voltage - Output	20 V, 15 VDC, 5 V, 12 V, 9 V	5 - 20 V

AC/DC WALL MT ADPT 5V/9V/12V 18W

Part	Applications	Approval Agency	Voltage - Output	Standard Number	Form	Input Type	Region Utilized	Power (Watts)	Output Connector	Operating Temperature [custom]	No Load Power Consumption	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max)	Efficiency	Input Connector	Size / Dimension	Size / Dimension	Size / Dimension	Current - Output (Max) [Max]
Tensility International Corp 16-00241	ITE (Commercial)	cULus, FCC	5 V, 9 V, 12 V	62368-1	Wall Mount (Class II)	Fixed Blade	North America	18 W	USB C Receptacle	0 °C, 35 °C	100 mW	1.14 "	44.1 mm	2.36 in	29 mm	1.74 "	60 mm	240 VAC	100 VAC	1.5 A, 2 A, 3 A	Level VI	NEMA 1-15P
Tensility International Corp 16-00242	ITE (Commercial)	cULus, FCC	5 V, 9 V, 12 V, 15 VDC, 20 V	62368-1	Wall Mount (Class II)	Fixed Blade	North America	42 W	C Receptacles, USB A	0 °C, 35 °C	100 mW	1.14 "		2.58 "		2.36 "		240 VAC	100 VAC		Level VI	NEMA 1-15P	60 mm	65.5 mm	29 mm	1.5 A, 2 A, 2.5 A, 3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V, 9V, 12V, 15V, 20V 42 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
