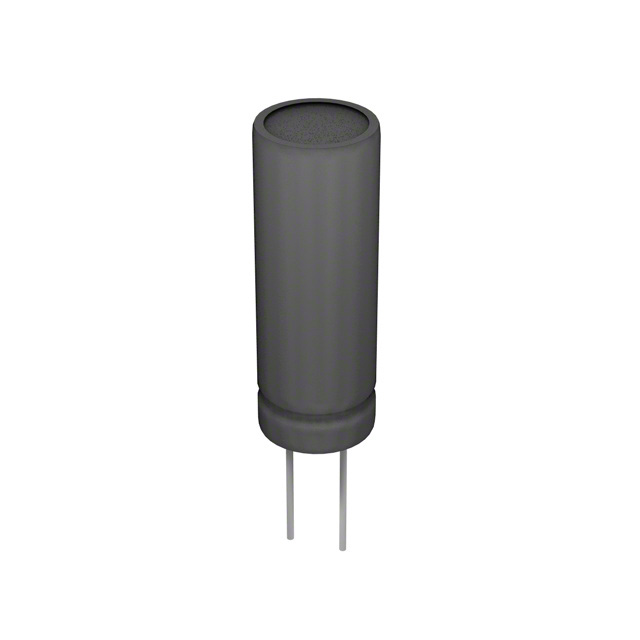

Specification	SXR332M010ST

Applications	General Purpose
Capacitance	3300 µF
ESR (Equivalent Series Resistance)	90 mOhm
Height - Seated (Max)	1.417 in
Lead Spacing	0.197 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	1.77 A, 1.06 A
Size / Dimension Diameter	0.512 in
Tolerance	20 %
Voltage - Rated	10 V
