PE6TR675

Active

Pasternack

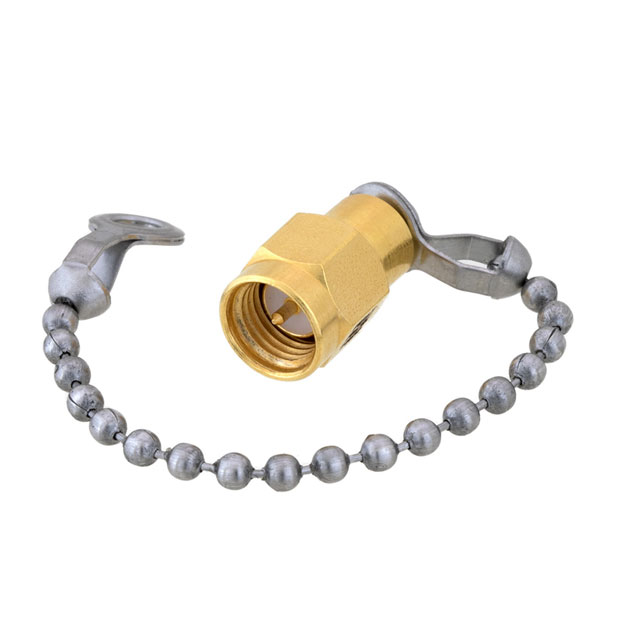

26.5GHZ TERMINATOR PLUG SMA 2W

Search across all available documentation for this part.

Active

Pasternack

26.5GHZ TERMINATOR PLUG SMA 2W

Technical Specifications

Parameters and characteristics for this part

Specification	PE6TR675

Body Finish	Gold
Body Material	Stainless Steel
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Chain
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Body Material	Connector Type	Mounting Type	Impedance	Body Finish	Contact Material	Connector Style	Dielectric Material	Frequency - Max [Max]	Contact Finish	Connector Style	Features	Connector Style	Connector Style
Pasternack PE6TR1045	Brass	Male Pin Plug	Cap Free Hanging	50 Ohms	Nickel	Beryllium Copper	4.3/10	Polytetrafluoroethylene (PTFE)	6000 MHz	Gold
Pasternack PE6TR673	Stainless Steel	Male Pin Plug	Cap Free Hanging	50 Ohms	Gold	Beryllium Copper	SMA	Polytetrafluoroethylene (PTFE)	26.5 GHz	Gold
Pasternack PE6TR1109	Stainless Steel	Male Pin Plug	Cap Free Hanging	50 Ohms		Beryllium Copper			34.5 GHz	Gold	3.5 mm
Pasternack PE6TR1048	Brass	Male Pin Plug	Cap Free Hanging	50 Ohms	Nickel	Beryllium Copper	4.3/10	Polytetrafluoroethylene (PTFE)	6000 MHz	Gold		Chain
Pasternack PE6TR028	Stainless Steel	Male Pin Plug	Cap Free Hanging	50 Ohms		Beryllium Copper			40 GHz	Gold	2.92 mm
Pasternack PE6TR675	Stainless Steel	Male Pin Plug	Cap Free Hanging	50 Ohms	Gold	Beryllium Copper	SMA	Polytetrafluoroethylene (PTFE)	26.5 GHz	Gold		Chain
Pasternack PE6TR1112	Stainless Steel	Female Socket Jack	Cap Free Hanging	50 Ohms		Beryllium Copper			34.5 GHz	Gold	3.5 mm
Pasternack PE6TR1104	Stainless Steel	Male Pin Plug	Cap Free Hanging	50 Ohms		Beryllium Copper			50 GHz	Gold	2.4 mm	Chain	OS-50	APC-2.4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Plug, Male Pin SMA 50 Ohms
