ASRM1JA10R0
ActiveStackpole Electronics Inc
RES 10 OHM 5% 1W AXIAL
ASRM1JA10R0
ActiveStackpole Electronics Inc
RES 10 OHM 5% 1W AXIAL
Description
General part information
ASRM1JA10R0

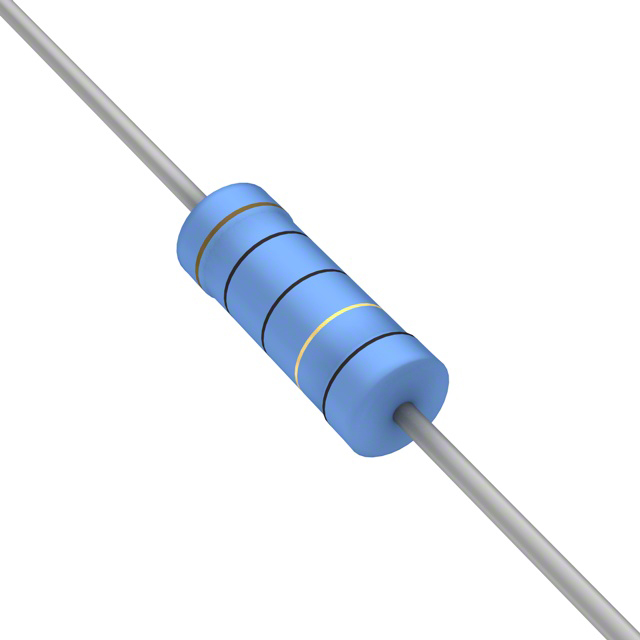

10 Ohms ±5% 1W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | ASRM1JA10R0 |
|---|---|
| Composition | Metal Film |
| Features | Pulse Withstanding, Safety, Flame Retardant Coating |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 10 Ohms |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.433 in |
| Temperature Coefficient (Highest) | 0 ppm/°C |
| Temperature Coefficient (Lowest) | -1800 ppm/°C |
| Tolerance | 5 % |
