726-521
ActiveWAGO Corporation

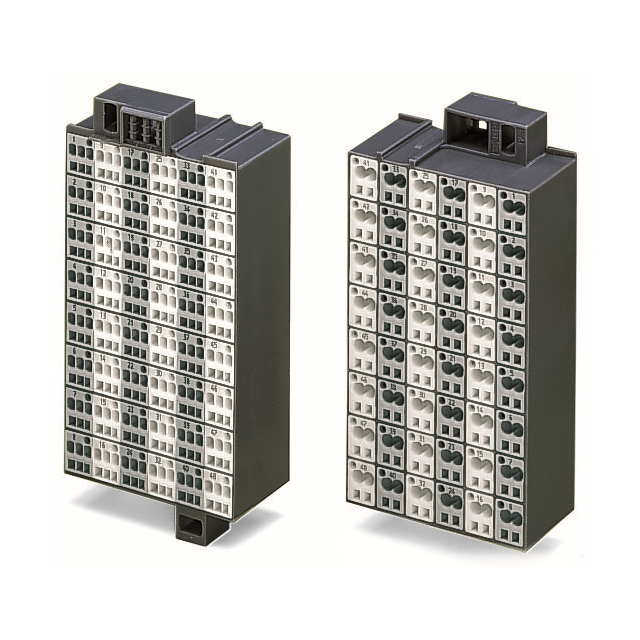

MATRIX PATCHBOARD; 48-POLE; MARK
726-521
ActiveWAGO Corporation
MATRIX PATCHBOARD; 48-POLE; MARK
Description
General part information
726-521
48 Position Terminal Block Gray Middle 65.3mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 726-521 |
|---|---|
| Current - IEC | 10 A |
| Height (Max) | 1.437 in |
| Housing Color | Gray |
| Length | 5.197 in |
| Mounting Type | DIN Rail |
| Number of Levels | 6 |
| Number of Positions | 48 |
| Stripping Length (Max) | 10 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 65.3 mm |
| Termination Style | Push In, Spring |
| Type | Middle |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 26 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
