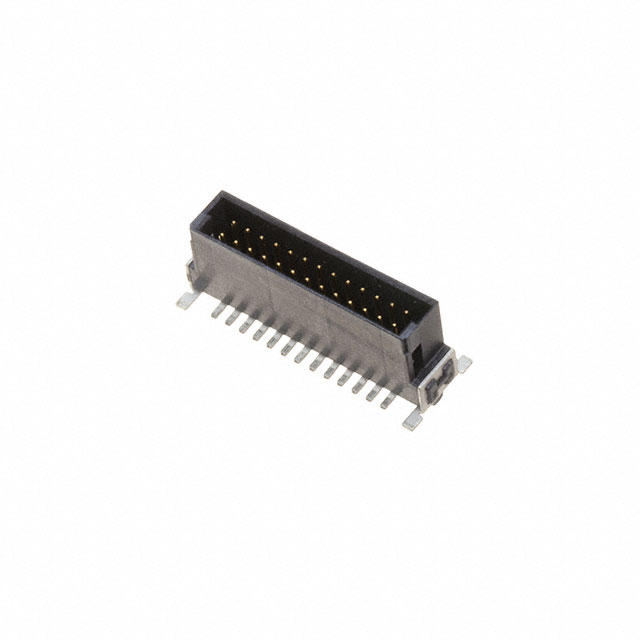

XH5E-2615-2N

Active

Omron Electronics Inc-EMC Div

PLUG, STRAIGHT, SMT PINS

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

PLUG, STRAIGHT, SMT PINS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XH5E-2615-2N	XH5E Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place, Board Guide, Solder Retention	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black	Black
Insulation Height	8.1 mm	6.6 - 8.1 mm
Insulation Height	0.319 in	0.26 - 0.319 in
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	9.5 mm, 12.3 mm	8 - 12.3 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	26	26 - 80
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Row Spacing - Mating	0.05 in	0.05 in
Row Spacing - Mating	1.27 mm	1.27 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	100 VAC	100 VAC

PLUG, STRAIGHT, SMT PINS

Part	Voltage Rating	Insulation Material	Number of Rows	Number of Positions Loaded	Contact Shape	Style	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Shrouding	Contact Material	Insulation Color	Features	Fastening Type	Mounting Type	Contact Type	Material Flammability Rating	Connector Type	Contact Finish - Mating
Omron Electronics Inc-EMC Div XH5E-6815-1N	100 VAC	Liquid Crystal Polymer (LCP)	2	All	Square	Board to Board, Cable	Tin	Solder	0.05 in	1.27 mm	8 mm, 10.8 mm	0.26 in	6.6 mm	105 ░C	-55 °C	0.05 in	1.27 mm	68	Shrouded - 4 Wall	Copper Alloy	Black	Board Guide, Pick and Place, Solder Retention	Push-Pull	Surface Mount	Male Pin	UL94 V-0	Header	Gold
Omron Electronics Inc-EMC Div XH5E-2615-2N	100 VAC	Liquid Crystal Polymer (LCP)	2	All	Square	Board to Board, Cable	Tin	Solder	0.05 in	1.27 mm	9.5 mm, 12.3 mm	0.319 in	8.1 mm	105 ░C	-55 °C	0.05 in	1.27 mm	26	Shrouded - 4 Wall	Copper Alloy	Black	Board Guide, Pick and Place, Solder Retention	Push-Pull	Surface Mount	Male Pin	UL94 V-0	Header	Gold
Omron Electronics Inc-EMC Div XH5E-8015-2N	100 VAC	Liquid Crystal Polymer (LCP)	2	All	Square	Board to Board, Cable	Tin	Solder	0.05 in	1.27 mm	9.5 mm, 12.3 mm	0.319 in	8.1 mm	105 ░C	-55 °C	0.05 in	1.27 mm	80	Shrouded - 4 Wall	Copper Alloy	Black	Board Guide, Pick and Place, Solder Retention	Push-Pull	Surface Mount	Male Pin	UL94 V-0	Header	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 26 position 0.050" (1.27mm)
