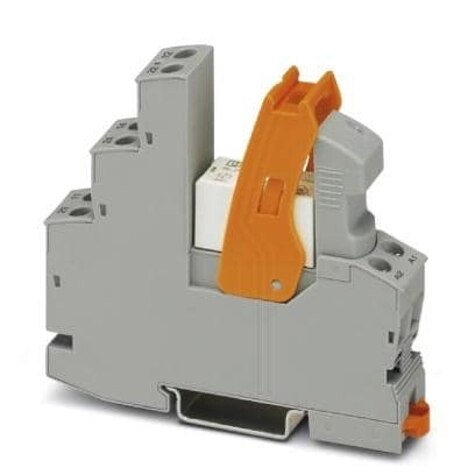

Specification	2903351

Coil Current	6 mA
Coil Resistance	38.33 kOhms
Coil Type	Non Latching
Coil Voltage	230 VDC
Contact Form	C, 1, SPDT, Form
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	50 mA
Features	Varistor, Socket Included, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	12 ms
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage AC (Max)	30 VAC
Switching Voltage DC (Max)	36 VDC
Termination Style	Screw Terminal

29033 Series

Part	Termination Style	Form A Count	Contact Form	Operating Temperature (Max)	Operating Temperature (Min)	Release Time	Coil Current	Contact Rating (Current)	Coil Voltage	Switching Voltage AC (Max)	Switching Voltage DC (Max)	Contact Material	Operate Time	Mounting Type	Approval Agency	Relay Type	Features	Coil Type	Coil Resistance	Pin Count
Phoenix Contact 2903361	Spring Terminal	1	SPST-NO	60 °C	-40 °C	8 ms	9 mA	6 A	24 VDC	250 VAC	250 VDC	Silver Tin Oxide (AgSnO)	5 ms	DIN Rail	CSA	General Purpose	Diode Lighted Indicator Socket Included	Non Latching	2.67 kOhms
Phoenix Contact 2903335	Spring Terminal		1 C Form SPDT	50 °C	-40 °C	20 ms	6 mA	50 mA	230 VDC	30 VAC	36 VDC	Gold (Au) Silver Nickel (AgNi)	12 ms	DIN Rail		General Purpose	Lighted Indicator Socket Included Varistor	Non Latching	38.3 kOhms
Phoenix Contact 2903336	Spring Terminal		1 C Form SPDT	50 °C	-40 °C	20 ms	8 mA	50 mA	120 V	30 VAC	36 VDC	Gold (Au) Silver Nickel (AgNi)	12 ms	DIN Rail		General Purpose	Lighted Indicator Socket Included Varistor	Non Latching	15 kOhms
Phoenix Contact 2903375	Screw Terminal		1 C Form SPDT	60 °C	-40 °C	8 ms	16 mA	6 A	12 VAC	250 VAC	250 VDC	Silver Tin Oxide (AgSnO)	5 ms	DIN Rail	CSA	General Purpose	Diode Lighted Indicator Socket Included	Non Latching	750 Ohms
Phoenix Contact 2903346	Screw Terminal		2 2 Form C C DPDT Form	70 °C	-40 °C	10 ms	18 mA	50 mA	24 VDC	30 VAC	36 VDC	Silver Nickel (AgNi)	8 ms	DIN Rail		General Purpose	Diode Lighted Indicator Socket Included	Non Latching	1.33 kOhms
Phoenix Contact 2903313	Spring Terminal		2 2 Form C C DPDT Form	50 °C	-40 °C	20 ms	70 mA	8.5 A	24 VDC	250 VAC	250 VDC	Silver Nickel (AgNi)	15 ms	DIN Rail	CSA	General Purpose	Lighted Indicator Socket Included Varistor	Non Latching	342.9 Ohms
Phoenix Contact 2903306	Spring Terminal		4 C Form PDT	50 °C	-40 °C	20 ms	70 mA	5 A	24 VDC	250 VAC	250 VDC	Silver Nickel (AgNi)	15 ms	DIN Rail	CSA	General Purpose	Lighted Indicator Socket Included Varistor	Non Latching	342.9 Ohms	4
Phoenix Contact 2903328	Spring Terminal		2 2 Form C C DPDT Form	50 °C	-40 °C	20 ms	8 mA	50 mA	120 V	30 VAC	36 VDC	Gold (Au) Silver Nickel (AgNi)	12 ms	DIN Rail		General Purpose	Lighted Indicator Socket Included Varistor	Non Latching	15 kOhms
Phoenix Contact 2903353	Screw Terminal		1 C Form SPDT	50 °C	-40 °C	20 ms	33 mA	50 mA	24 VDC	30 VAC	36 VDC	Silver Nickel (AgNi)	12 ms	DIN Rail		General Purpose	Lighted Indicator Socket Included Varistor	Non Latching	727 Ohms
Phoenix Contact 2903334	Spring Terminal		2 2 Form C C DPDT Form	70 °C	-40 °C	10 ms	18 mA	8 A	24 VDC	250 VAC	250 VDC	Silver Nickel (AgNi)	8 ms	DIN Rail	CSA	General Purpose	Diode Lighted Indicator Socket Included	Non Latching	1.33 kOhms
