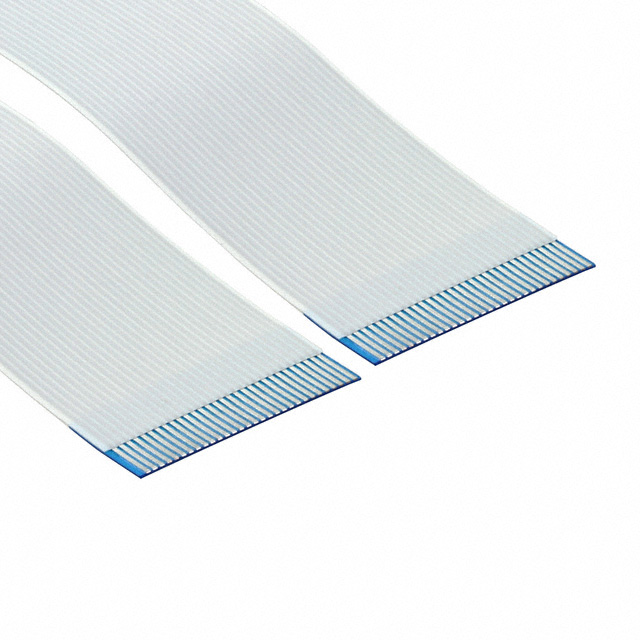

Specification	0982660332

Cable Type	FPC, FFC
Length	228.6 mm
Length - Exposed Ends	0.157 in
Number of Conductors	30
Pitch	0.02 in
Termination Style	Bottom on Other, Backers on Both Sides, Top on One Side

098266 Series

...

Part	Pitch	Cable Type	Termination Style	Number of Conductors	Length - Exposed Ends	Length
Molex 0982660787	0.02 in	FFC FPC	Backers on Both Sides Top on Both Sides	9	0.157 in	12 in
Molex 0982661054	0.02 in	FFC FPC	Backers on Both Sides Bottom on Other Top on One Side	35	0.157 in	2 in
Molex 0982660957	0.02 in	FFC FPC	Backers on Both Sides Top on Both Sides	25	0.157 in	8 in
Molex 0982660867	0.02 in	FFC FPC	Backers on Both Sides Top on Both Sides	17	0.157 in	7 in
Molex 0982660435	0.02 in	FFC FPC	Backers on Both Sides Top on Both Sides	40	0.157 in	0.5 ft
Molex 0982660160	0.02 in	FFC FPC	Backers on Both Sides Bottom on Other Top on One Side	14	0.157 in	12 in
Molex 0982660414	0.02 in	FFC FPC	Backers on Both Sides Bottom on Other Top on One Side	38	0.157 in	0.5 ft
Molex 0982660809	0.02 in	FFC FPC	Backers on Both Sides Top on Both Sides	11	0.157 in	12 in
Molex 0982661006	0.02 in	FFC FPC	Backers on Both Sides Bottom on Other Top on One Side	29	0.157 in	12 in
Molex 0982660872	0.02 in	FFC FPC	Backers on Both Sides Bottom on Other Top on One Side	17	0.157 in	10 in
