311110004
UnknownSeeed Technology Co., Ltd

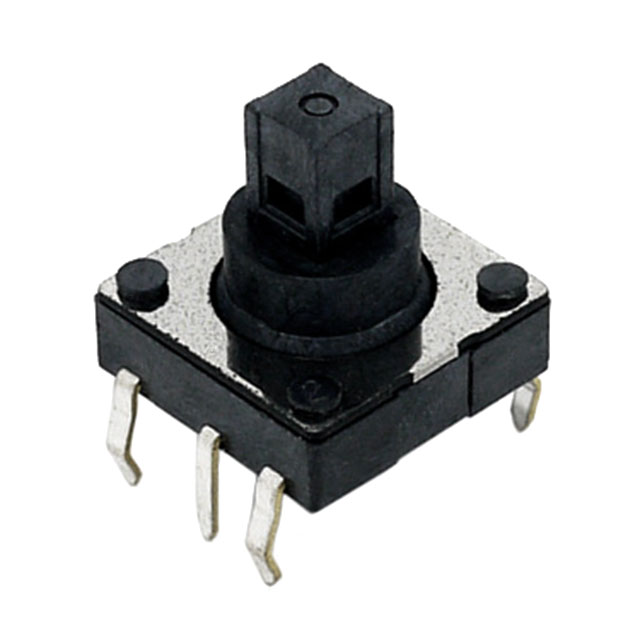

SWITCH NAVIGATION DGTL 50MA 12V
311110004
UnknownSeeed Technology Co., Ltd
SWITCH NAVIGATION DGTL 50MA 12V
Description
General part information
311110004
Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | 311110004 |
|---|---|
| Actuator Type | Plunger for Cap |
| Axis Count | 2 Axis |
| Current Rating | 50 mA |
| Electrical Life (Cycles) | 100000 Cycles |
| Mechanical Life (Cycles) | 100000 Cycles |
| Mounting Type | Through Hole |
| Operating Force (Max) | 320 gf |
| Operating Force (Min) | 160 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Digital (Mechanical Switch) |
| Switch Function | 4-Way Directional, Center Select |
| Termination Style | PC Pin |
| Type | Navigation Switch, 2 - Axis |
| Voltage Rating - DC | 12 V |
