PE-53718NL
ActivePulse Electronics
FIXED IND 21.9UH 2.7A 90.5 MOHM
PE-53718NL
ActivePulse Electronics
FIXED IND 21.9UH 2.7A 90.5 MOHM
Description
General part information
PE-53718NL

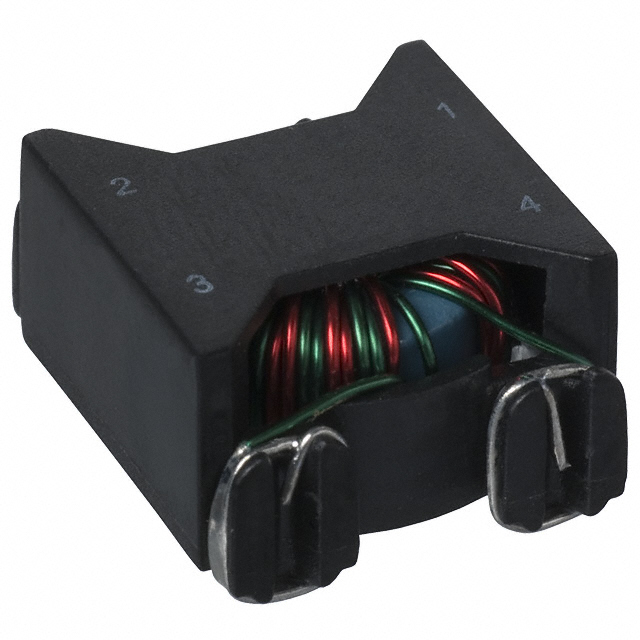

21.9 µH Unshielded Toroidal Inductor 2.7 A 90.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-53718NL |
|---|---|
| Current Rating | 2.7 A |
| DC Resistance (DCR) (Max) | 90.5 mOhm |
| Height - Seated (Max) | 0.39 in |
| Inductance | 21.9 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.715 in |
| Size / Dimension Width | 0.59 in |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
