7814
ActiveKeystone Electronics
CONN QC TAB 0.250 SOLDER
7814
ActiveKeystone Electronics
CONN QC TAB 0.250 SOLDER
Description
General part information
7814

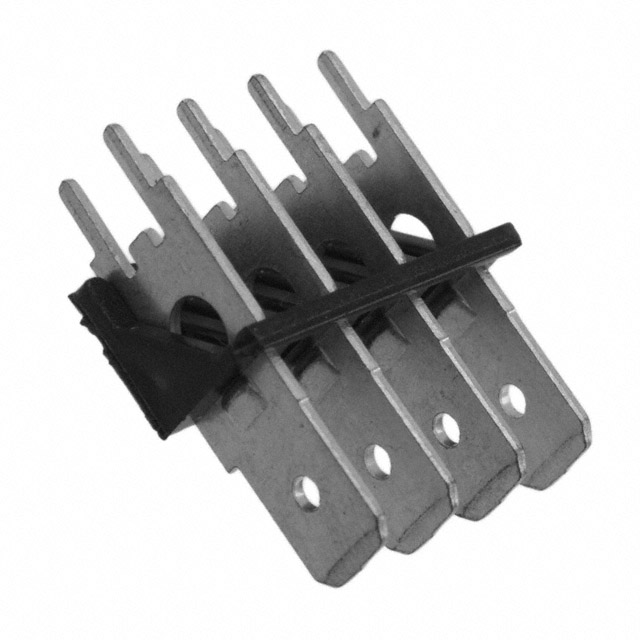

0.250" (6.35mm) Quick Connect Male Solder Connector Non-Mating End Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 7814 |
|---|---|
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Tabs, 4 Tabs |
| Features | 4 Tabs |
| Gender | Male |
| Insulation | Non-Mating End Insulated |
| Length - Overall | 0.984 in |
| Mounting Type | Through Hole |
| Tab Length | 0.307 in |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Tabs Count | 4 |
| Terminal Type | Header |
| Termination | Solder |
