3240763
ActivePhoenix Contact

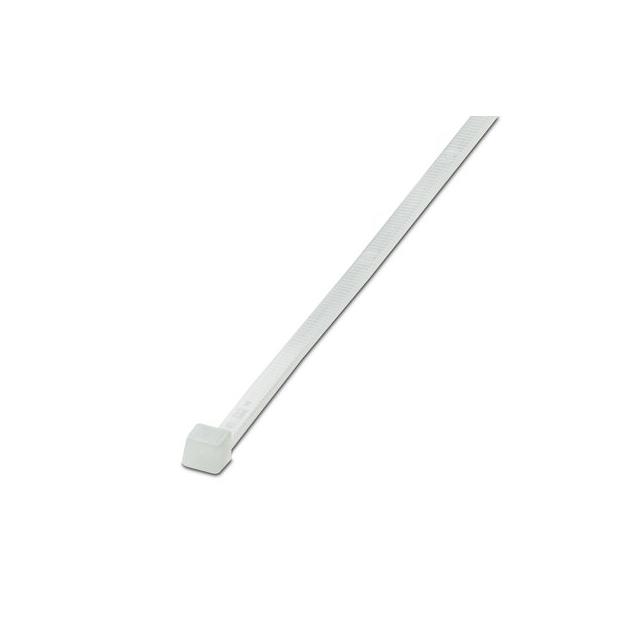

CBL TIE LOCKING TRANS 7.87"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3240763
ActivePhoenix Contact
CBL TIE LOCKING TRANS 7.87"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3240763 | WT-HF 4 Series |
|---|---|---|
| Color | Transparent | Black, Transparent |
| Length - Actual | 200 mm | 200 mm |
| Length - Actual | 0.656 ft | 0.656 ft |
| Length - Actual | 7.87 " | 7.87 " |
| Length - Actual | - | 160 - 290 mm |
| Length - Actual | - | 0.525 - 0.951 ' |
| Length - Actual | - | 6.3 - 11.42 " |
| Length - Approximate | 7.75 in | 7.75 - 11.5 in |
| Length - Approximate | - | 6.25 in |
| Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Width | - | 3.61 - 4.5 mm |
| Width | - | 0.142 - 0.177 in |
| Width [y] | 4.8 mm | 4.8 mm |
| Width [y] | 0.189 in | 0.189 in |
| Wire/Cable Tie Type | Standard, Locking | Standard, Locking |
WT-HF 4 Series
CABLE TIE
| Part | Length - Approximate | Mounting Type | Width [y] | Width [y] | Color | Wire/Cable Tie Type | Material | Length - Actual | Length - Actual | Length - Actual | Length - Actual [x] | Length - Actual [x] | Length - Actual [x] | Length - Approximate [x] | Width [x] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3240761 | 7.75 in | Free Hanging (In-Line) | 4.8 mm | 0.189 in | Black | Locking, Standard | Polyamide (PA66), Nylon 6/6 | 200 mm | 0.656 ft | 7.87 " | ||||||
Phoenix Contact 3240757 | Free Hanging (In-Line) | Black | Locking, Standard | Polyamide (PA66), Nylon 6/6 | 160 mm | 0.525 ' | 6.3 " | 6.25 in | 4.5 mm | 0.177 in | ||||||
Phoenix Contact 3240755 | 11.5 in | Free Hanging (In-Line) | Transparent | Locking, Standard | Polyamide (PA66), Nylon 6/6 | 290 mm | 0.951 ft | 11.42 " | 3.61 mm | 0.142 in | ||||||
Phoenix Contact 3240756 | Free Hanging (In-Line) | Transparent | Locking, Standard | Polyamide (PA66), Nylon 6/6 | 160 mm | 0.525 ' | 6.3 " | 6.25 in | 4.5 mm | 0.177 in | ||||||
Phoenix Contact 3240763 | 7.75 in | Free Hanging (In-Line) | 4.8 mm | 0.189 in | Transparent | Locking, Standard | Polyamide (PA66), Nylon 6/6 | 200 mm | 0.656 ft | 7.87 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.03 | |
Description
General part information
WT-HF 4 Series
Standard, Locking Transparent 0.189" (4.80mm)
