Description
General part information

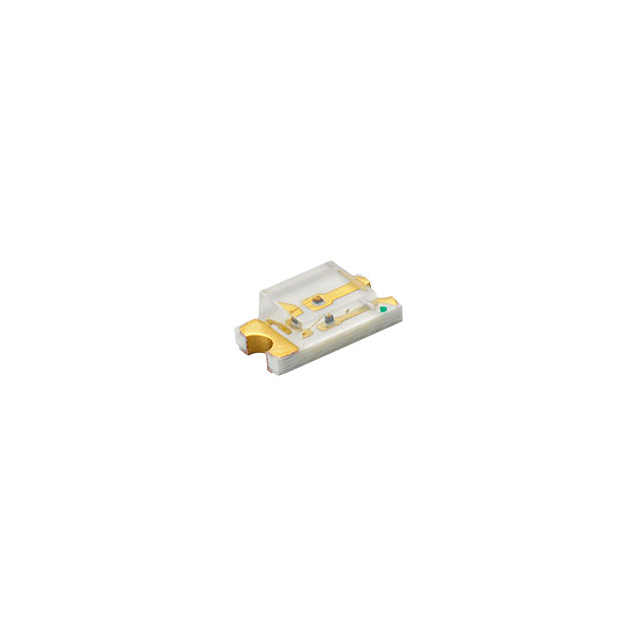

CS126AR2C
Red 630nm LED Indication - Discrete 1.95V 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CS126AR2C |
|---|---|
| Color | Red |
| Current - Test | 20 mA |
| Height (Max) | 1.2 mm |
| Lens Color | Colorless |
| Lens Length | 2 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Clear |
| Lens Width | 1.6 mm |
| Millicandela Rating | 60 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Size / Dimension Length | 3.2 mm |
| Size / Dimension Width | 1.6 mm |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Dominant | 630 nm |
| Wavelength - Peak | 645 nm |
