Description
General part information

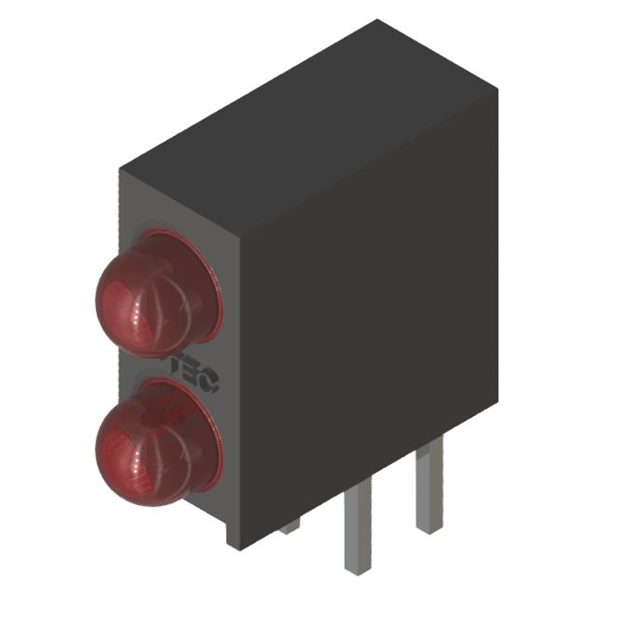

PL309-2R12
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Orange-Red Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | PL309-2R12 |
|---|---|
| Color | Orange-Red |
| Configuration | High |
| Configuration Count | 2 |
| Current | 20 mA |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 20 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 55 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 635 nm |
