2SA1052MCTR-E

Active

Renesas Electronics Corporation

BIPOLAR SMALL SIGNAL TRANSISTORS

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

BIPOLAR SMALL SIGNAL TRANSISTORS

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1052MCTR-E

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	500 nA
Mounting Type	Surface Mount
Operating Temperature	150 °C

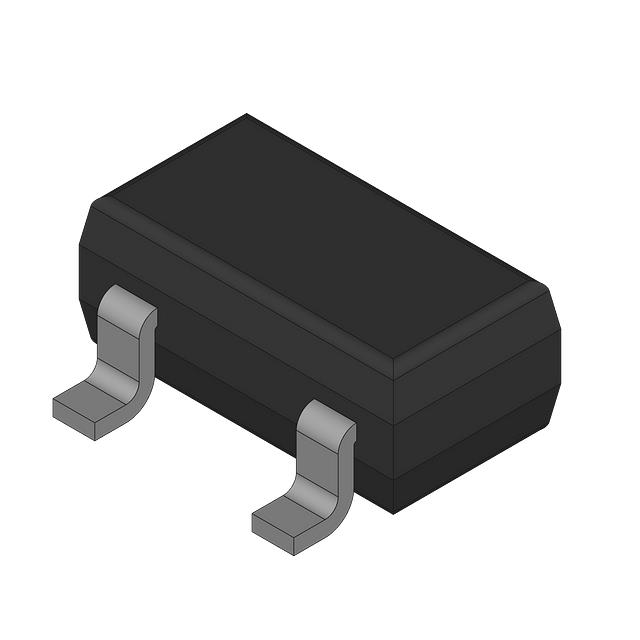

Package / Case	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	150 mW
Supplier Device Package	3-MPAK
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	200 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2704	$ 0.11

Bipolar Small Signal Transistors

Part	Package / Case	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Transistor Type	Current - Collector Cutoff (Max) [Max]	Operating Temperature	Mounting Type	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]
Renesas Electronics Corporation 2SA1052MCTR-E	SC-59, SOT-23-3, TO-236-3	200 mV	150 mW	PNP	500 nA	150 °C	Surface Mount	3-MPAK	100 mA	30 V

General part information

Bipolar Small Signal Transistors

Technical documentation and resources

No documents available
