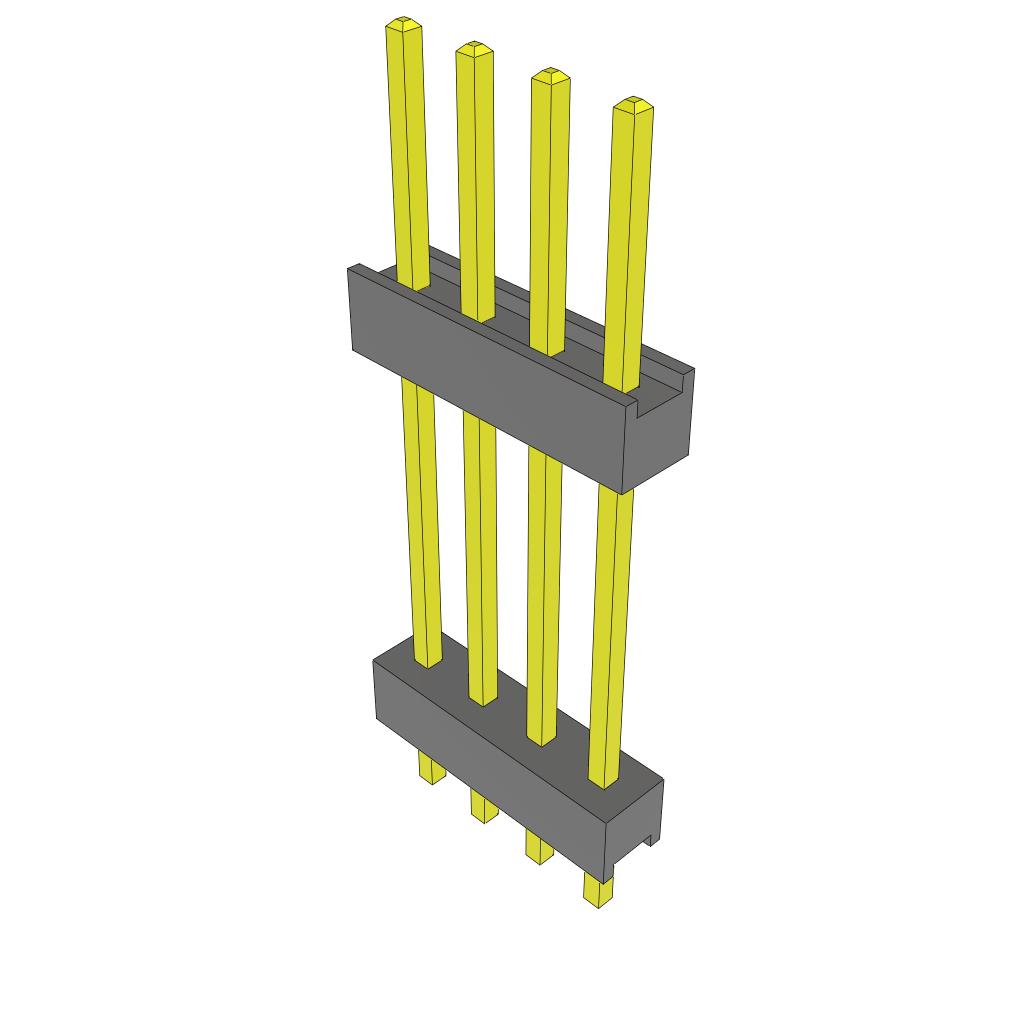

DW-04-12 Series

...

Part	Length - Tail	Pitch	Number of Rows	Row Spacing	Length - Overall Pin	Length - Post (Mating)	Length - Stack Height	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Number of Positions	Color	Termination	Mounting Type
Samtec Inc. DW-02-20-G-D-835	0.11 in	0.1 in	2	0.1 in	1.13 in	0.185 in	0.835 in	10 µin	Gold	4	Black	Solder	Through Hole
Samtec Inc. DW-02-20-L-D-700	0.11 in	0.1 in	2	0.1 in	1.13 in	0.32 in	0.7 in	10 µin	Gold	4	Black	Solder	Through Hole
Samtec Inc. DW-02-20-L-D-740	0.11 in	0.1 in	2	0.1 in	1.13 in	0.28 in	0.74 in	10 µin	Gold	4	Black	Solder	Through Hole
Samtec Inc. DW-02-20-S-S-450	0.11 in	0.1 in	1		1.13 in	0.57 in	0.45 in	30 µin	Gold	2	Black	Solder	Through Hole
Samtec Inc. DW-02-20-L-D-669	0.11 in	0.1 in	2	0.1 in	1.13 in	0.351 in	0.669 in	10 µin	Gold	4	Black	Solder	Through Hole
Samtec Inc. DW-02-20-S-S-748	0.11 in	0.1 in	1		1.13 in	0.272 in	0.748 in	30 µin	Gold	2	Black	Solder	Through Hole
Samtec Inc. DW-02-20-G-S-750	0.11 in	0.1 in	1		1.13 in	0.27 in	0.75 in	10 µin	Gold	2	Black	Solder	Through Hole
Samtec Inc. DW-02-20-T-D-875	0.11 in	0.1 in	2	0.1 in	1.13 in	0.145 in	0.875 in		Tin	4	Black	Solder	Through Hole
Samtec Inc. DW-02-20-T-D-800	0.11 in	0.1 in	2	0.1 in	1.13 in	0.22 in	0.8 in		Tin	4	Black	Solder	Through Hole
Samtec Inc. DW-02-20-G-S-810	0.11 in	0.1 in	1		1.13 in	0.21 in	0.81 in	10 µin	Gold	2	Black	Solder	Through Hole
