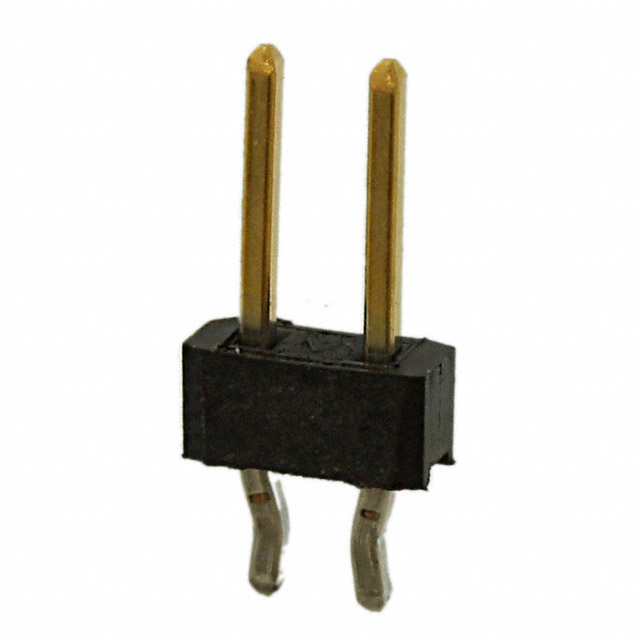

104351-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS

Deep-Dive with AI

Search across all available documentation for this part.

104351-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	104351-1	104351 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating [x]	0.23 in	0.23 in
Contact Length - Post [x]	0.12 in	0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.09 in	0.09 in
Insulation Height	2.29 mm	2.29 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2 - 40
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.44 in	0.44 in
Overall Contact Length	11.18 mm	11.18 mm
Pitch - Mating	-	0.1 in
Pitch - Mating	-	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Kinked Pin, Solder	Kinked Pin, Solder
Voltage Rating	30 VAC	30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.30
		10	$ 0.26
		100	$ 0.22
		500	$ 0.19
		1040	$ 0.18
		5200	$ 0.17
		10400	$ 0.16

104351 Series

CONN HEADER VERT 28POS 2.54MM

Part	Contact Finish - Post	Insulation Material	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height	Insulation Height	Number of Positions Loaded	Connector Type	Mounting Type	Contact Shape	Style	Overall Contact Length	Overall Contact Length	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Number of Positions	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1-104351-4	Tin-Lead	Thermoplastic	30 VAC	0.12 in	3.05 mm	Gold	-65 ░C	105 ░C	3 A	0.09 in	2.29 mm	All	Breakaway, Header	Through Hole	Square	Board to Board, Cable	0.44 in	11.18 mm	Unshrouded	2.54 mm	0.1 in	Kinked Pin, Solder	Male Pin	Push-Pull	15 µin	0.38 µm	Black	2	0.23 in	5.84 mm	Copper Alloy	28	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin
TE Connectivity AMP Connectors 1-104351-0	Tin-Lead	Thermoplastic	30 VAC	0.12 in	3.05 mm	Gold	-65 ░C	105 ░C	3 A	0.09 in	2.29 mm	All	Breakaway, Header	Through Hole	Square	Board to Board, Cable	0.44 in	11.18 mm	Unshrouded	2.54 mm	0.1 in	Kinked Pin, Solder	Male Pin	Push-Pull	15 µin	0.38 µm	Black	2	0.23 in	5.84 mm	Copper Alloy	20	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin
TE Connectivity AMP Connectors 104351-1	Tin-Lead	Thermoplastic	30 VAC	0.12 in	3.05 mm	Gold	-65 ░C	105 ░C	3 A	0.09 in	2.29 mm	All	Breakaway, Header	Through Hole	Square	Board to Board, Cable	0.44 in	11.18 mm	Unshrouded	2.54 mm	0.1 in	Kinked Pin, Solder	Male Pin	Push-Pull	15 µin	0.38 µm	Black	2	0.23 in	5.84 mm	Copper Alloy	2			UL94 V-0	2.54 µm	100 µin
TE Connectivity AMP Connectors 1-104351-1	Tin-Lead	Thermoplastic	30 VAC	0.12 in	3.05 mm	Gold	-65 ░C	105 ░C	3 A	0.09 in	2.29 mm	All	Breakaway, Header	Through Hole	Square	Board to Board, Cable	0.44 in	11.18 mm	Unshrouded	2.54 mm	0.1 in	Kinked Pin, Solder	Male Pin	Push-Pull	15 µin	0.38 µm	Black	2	0.23 in	5.84 mm	Copper Alloy	22 positions	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin
TE Connectivity AMP Connectors 1-104351-7	Tin-Lead	Thermoplastic	30 VAC	0.12 in	3.05 mm	Gold	-65 ░C	105 ░C	3 A	0.09 in	2.29 mm	All	Breakaway, Header	Through Hole	Square	Board to Board, Cable	0.44 in	11.18 mm	Unshrouded	2.54 mm	0.1 in	Kinked Pin, Solder	Male Pin	Push-Pull	15 µin	0.38 µm	Black	2	0.23 in	5.84 mm	Copper Alloy	40	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin
TE Connectivity AMP Connectors 1-104351-6	Tin-Lead	Thermoplastic	30 VAC	0.12 in	3.05 mm	Gold	-65 ░C	105 ░C	3 A	0.09 in	2.29 mm	All	Breakaway, Header	Through Hole	Square	Board to Board, Cable	0.44 in	11.18 mm	Unshrouded	2.54 mm	0.1 in	Kinked Pin, Solder	Male Pin	Push-Pull	15 µin	0.38 µm	Black	2	0.23 in	5.84 mm	Copper Alloy	34	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin
TE Connectivity AMP Connectors 104351-9	Tin-Lead	Thermoplastic	30 VAC	0.12 in	3.05 mm	Gold	-65 ░C	105 ░C	3 A	0.09 in	2.29 mm	All	Breakaway, Header	Through Hole	Square	Board to Board, Cable	0.44 in	11.18 mm	Unshrouded	2.54 mm	0.1 in	Kinked Pin, Solder	Male Pin	Push-Pull	15 µin	0.38 µm	Black	2	0.23 in	5.84 mm	Copper Alloy	18	0.1 in	2.54 mm	UL94 V-0	2.54 µm	100 µin

Description

General part information

104351 Series

Connector Header Through Hole 2 position
