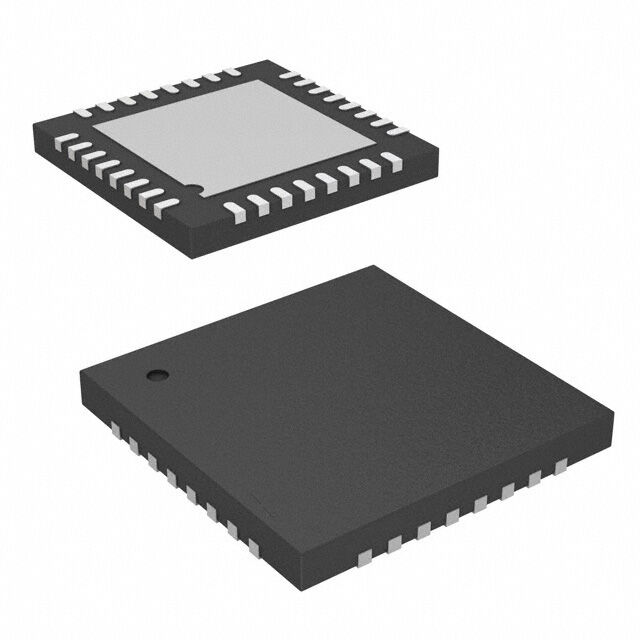

CY8C4024LQI-S402

Active

Infineon Technologies

ARM MICROCONTROLLER, 32BIT, 24MHZ ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CY8C4024LQI-S402

Active

Infineon Technologies

ARM MICROCONTROLLER, 32BIT, 24MHZ ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY8C4024LQI-S402

Connectivity	IrDA, SmartCard, I2C, SPI, SSP, LINbus, Microwire, UART/USART
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit Single-Core
Data Converters	A/D 1x10b
Mounting Type	Surface Mount
Number of I/O	27
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	32-UFQFN Exposed Pad
Peripherals	Brown-out Detect/Reset, CapSense, LVD, POR, PWM, WDT, LCD
Program Memory Size	16 KB
Program Memory Type	FLASH
RAM Size	2K x 8
Speed	24 MHz
Supplier Device Package	32-QFN (5x5)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V

CY8C4024 Series

Part	Program Memory Type	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Package / Case	Mounting Type	Connectivity	Core Processor	Peripherals	RAM Size	Supplier Device Package	Program Memory Size	Core Size	Number of I/O	Data Converters	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Data Converters [custom]	Data Converters [custom]
Infineon Technologies CY8C4024LQI-S413	FLASH	Internal	85 °C	-40 °C	24 MHz	40-UFQFN Exposed Pad	Surface Mount	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	ARM® Cortex®-M0+	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	2K x 8	40-QFN (6x6)	16 KB	32-Bit Single-Core	34	A/D 1x10b	1.71 V	5.5 V
Infineon Technologies CY8C4024LQI-S402	FLASH	Internal	85 °C	-40 °C	24 MHz	32-UFQFN Exposed Pad	Surface Mount	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	ARM® Cortex®-M0+	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	2K x 8	32-QFN (5x5)	16 KB	32-Bit Single-Core	27	A/D 1x10b	1.71 V	5.5 V
Infineon Technologies CY8C4024LQI-S411T	FLASH	Internal	85 °C	-40 °C	24 MHz	24-UFQFN Exposed Pad	Surface Mount	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	ARM® Cortex®-M0+	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	2K x 8	24-QFN (4x4)	16 KB	32-Bit Single-Core	19	A/D 1x10b	1.71 V	5.5 V
Infineon Technologies CY8C4024LQI-S413	FLASH	Internal	85 °C	-40 °C	24 MHz	40-UFQFN Exposed Pad	Surface Mount	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	ARM® Cortex®-M0+	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	2K x 8	40-QFN (6x6)	16 KB	32-Bit Single-Core	34	A/D 1x10b	1.71 V	5.5 V
Infineon Technologies CY8C4024FNI-S412T	FLASH	Internal	85 °C	-40 °C	24 MHz	25-XFBGA WLCSP	Surface Mount	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	ARM® Cortex®-M0+	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	2K x 8	25-WLCSP (2.02x1.93)	16 KB	32-Bit Single-Core	21 I/O	A/D 1x10b	1.71 V	5.5 V
Infineon Technologies CY8C4024FNI-S412T	FLASH	Internal	85 °C	-40 °C	24 MHz	25-XFBGA WLCSP	Surface Mount	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	ARM® Cortex®-M0+	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	2K x 8	25-WLCSP (2.02x1.93)	16 KB	32-Bit Single-Core	21 I/O	A/D 1x10b	1.71 V	5.5 V
Infineon Technologies CY8C4024AZI-S413T	FLASH	Internal	85 °C	-40 °C	24 MHz	48-LQFP	Surface Mount	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	ARM® Cortex®-M0+	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	2K x 8	48-TQFP (7x7)	16 KB	32-Bit Single-Core	36	A/D 1x10b	1.71 V	5.5 V
Infineon Technologies CY8C4024LQI-S402	FLASH	Internal	85 °C	-40 °C	24 MHz	32-UFQFN Exposed Pad	Surface Mount	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	ARM® Cortex®-M0+	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	2K x 8	32-QFN (5x5)	16 KB	32-Bit Single-Core	27	A/D 1x10b	1.71 V	5.5 V
Infineon Technologies CY8C4024LQI-S412	FLASH	Internal	85 °C	-40 °C	24 MHz	32-UFQFN Exposed Pad	Surface Mount	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	ARM® Cortex®-M0+	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	2K x 8	32-QFN (5x5)	16 KB	32-Bit Single-Core	27	A/D 1x10b	1.71 V	5.5 V
Infineon Technologies CY8C4024AXI-S412	FLASH	Internal	85 °C	-40 °C	24 MHz	32-LQFP	Surface Mount	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	ARM® Cortex®-M0+	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	2K x 8	32-TQFP (7x7)	16 KB	32-Bit Single-Core	27		1.71 V	5.5 V	7 10	2 channels 16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.79
		1	$ 1.79
		10	$ 1.32
		10	$ 1.32
		25	$ 1.21
		25	$ 1.21
		100	$ 1.08
		100	$ 1.08
		490	$ 0.98
		490	$ 0.98
		726	$ 1.20
		726	$ 1.20
		980	$ 0.97
		980	$ 0.97
Newark	Each	1	$ 1.70
		10	$ 1.35
		100	$ 1.23
		500	$ 1.18

Description

General part information

CY8C4024 Series

ARM® Cortex®-M0+ PSOC® 4 CY8C4000S Microcontroller IC 32-Bit Single-Core 24MHz 16KB (16K x 8) FLASH 32-QFN (5x5)
