LB26RGW01
ActiveNKK Switches
STANDARD SIZE PANEL SEAL PUSHBUTTON
LB26RGW01
ActiveNKK Switches
STANDARD SIZE PANEL SEAL PUSHBUTTON
Description
General part information
LB26RGW01

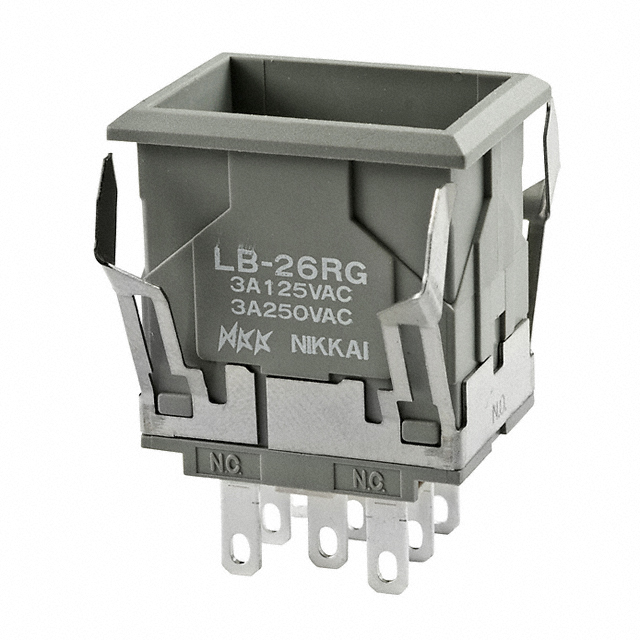

Pushbutton Switch DPDT Standard Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | LB26RGW01 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Current Rating | 3 A |
| Electrical Life (Cycles) | 100000 Cycles |
| Mechanical Life (Cycles) | 200000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Length | 22.4 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 16.2 mm |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-On |
| Termination Style | Quick Connect, Solder |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
