AISC-1206-39NJ-T
ActiveAbracon LLC
FIXED IND 39NH 1A 120 MOHM SMD
AISC-1206-39NJ-T
ActiveAbracon LLC
FIXED IND 39NH 1A 120 MOHM SMD
Description
General part information
AISC-1206-39NJ-T

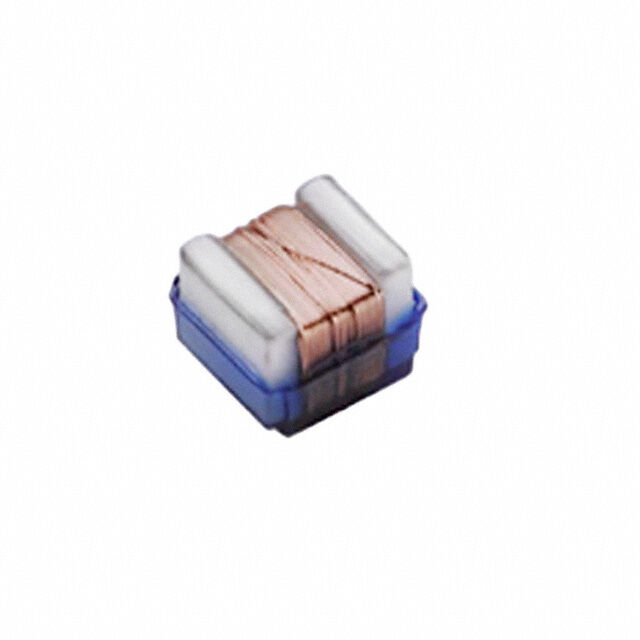

39 nH Unshielded Drum Core, Wirewound Inductor 1 A 120mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | AISC-1206-39NJ-T |
|---|---|
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 120 mOhm |
| Frequency - Self Resonant | 1.8 GHz |
| Height - Seated (Max) | 0.06 in |
| Inductance | 39 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Q | 50 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.14 in |
| Size / Dimension Width | 0.085 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
