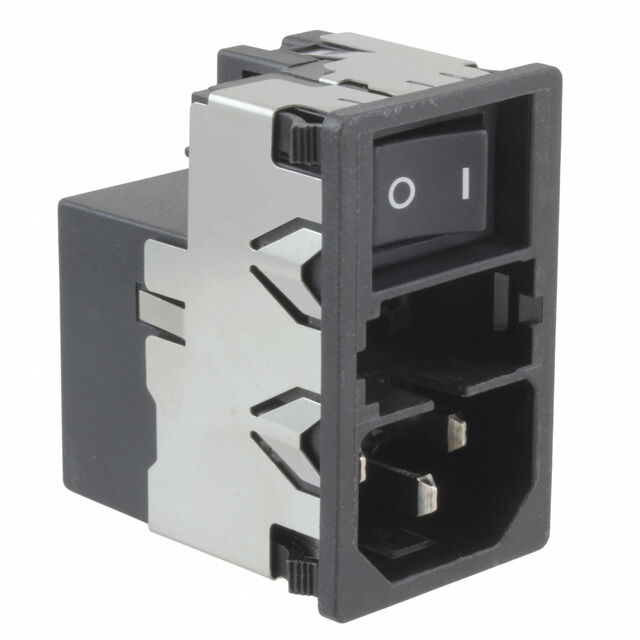

KMF1.1163.11

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	KMF1.1163.11

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	6 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.8 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Accomodates a Fuse	Mounting Type	Features	Current Rating - Appliance Inlet	Connector Type	Switch Features	Current Rating - Filter	Connector Style	Termination	Termination	Voltage Rating - Appliance Inlet	Fuse Holder, Drawer	Ingress Protection	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Approval Agency
SCHURTER Inc. KMF1.1163.11		Panel Mount, Snap-In	Shielded	10 A	Receptacle, Male Blades - Module	Switch On-Off	6 A	IEC 320-C14	0.189 ", 4.8 mm	Quick Connect	250 VAC	Drawer Sold Separate	IP40	2.5 mm	1 mm	0.098 in	0.039 in	UL94 V-0	47.8 mm	28.8 mm	Filtered (EMI, RFI) - Commercial, Medical	CCC, cULus, ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
