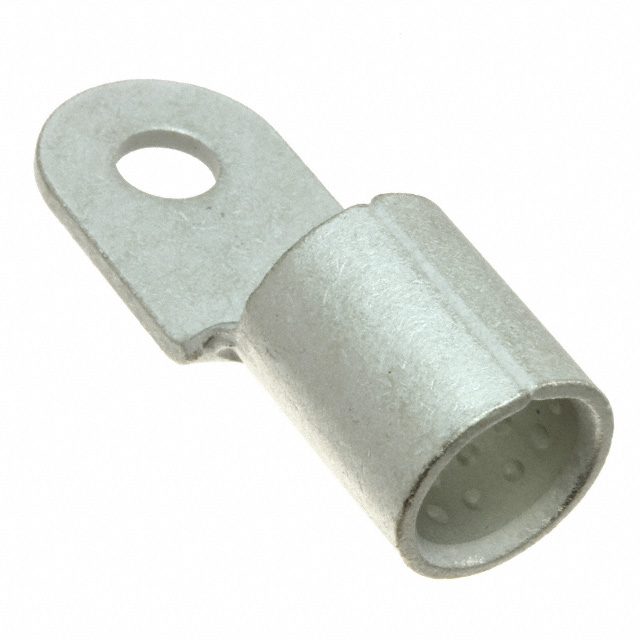

55821-1

Active

TE Connectivity Raychem Cable Protection

TERMINALS BODY BRAZED RING 1/0

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Digital Data Sheet +3

55821-1

Active

TE Connectivity Raychem Cable Protection

TERMINALS BODY BRAZED RING 1/0

Deep-Dive with AI

DocumentsDatasheet Digital Data Sheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	55821-1

Contact Finish	Tin
Contact Material	Copper
Features	Brazed Seam, Serrated Termination
Insulation	Non-Insulated
Length - Overall	47.21 mm
Length - Overall	1.859 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	1.78 mm
Thickness	0.07 in
Width - Outer Edges [y]	17.15 mm
Width - Outer Edges [y]	0.675 in
Wire Gauge	44 AWG

SOLISTRAND Series

Terminals TERM R 16-14 8 TERM R 16-14 8

Part	Material - Insulation	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Contact Material	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Color	Length - Overall [x]	Length - Overall [x]	Terminal Type	Features	Mounting Type	Insulation	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Length - Overall	Length - Overall	Width - Outer Edges	Width - Outer Edges	Insulation Diameter [Max] [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall	Wire Gauge	Stud/Tab Size	Number of Wire Entries
TE Connectivity Raychem Cable Protection 9-1377172-5	Poly-Vinyl Chloride (PVC)	Tin	22 AWG	16 AWG	Crimp	Copper	0.14 in	0.105 in	3.56 mm	2.67 mm	Red	0.809 in	20.55 mm	Circular	Serrated Termination	Free Hanging (In-Line)	Insulated	0.031 in	0.79 mm	7.14 mm	0.281 in	8 Stud
TE Connectivity Raychem Cable Protection 9-1377172-7	Poly-Vinyl Chloride (PVC)	Tin	22 AWG	16 AWG	Crimp	Copper	0.14 in	0.106 in		2.69 mm	Red			Circular	Serrated Termination	Free Hanging (In-Line)	Insulated	0.032 in	0.81 mm			8 Stud	21.79 mm	0.858 in	8 mm	0.315 in	3.56 mm
TE Connectivity Raychem Cable Protection 33464		Tin			Crimp	Copper								Circular	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Non-Insulated	0.057 in	1.45 mm				1.246 in					0.625 in	15.88 mm	31.65 mm	6 AWG	10 Stud
TE Connectivity Raychem Cable Protection 9-1377172-9	Poly-Vinyl Chloride (PVC)	Tin	22 AWG	16 AWG	Crimp	Copper	0.14 in	0.105 in	3.56 mm	2.67 mm	Red	1.09 in	27.69 mm	Circular	Serrated Termination	Free Hanging (In-Line)	Insulated	0.031 in	0.79 mm	11.91 mm	0.469 in											0.25 Stud
TE Connectivity Raychem Cable Protection 33460		Tin			Crimp	Copper						0.933 in	23.7 mm	Circular	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Non-Insulated	0.048 in	1.22 mm	11.91 mm	0.469 in										8 AWG	10 Stud
TE Connectivity Raychem Cable Protection 55821-1		Tin			Crimp	Copper								Circular	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Non-Insulated	0.07 in	1.78 mm	17.15 mm	0.675 in		47.21 mm	1.859 in							44 AWG	0.25 Stud
TE Connectivity Raychem Cable Protection 8-330368-1					Crimp									Butt Splice Individual Openings Inline	Brazed Seam Serrated Mating Area		Non-Insulated																2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.32
		10	$ 12.06
		25	$ 11.74
		50	$ 11.29
Newark	Each	500	$ 12.29
Sager	N/A	500	$ 15.06

Description

General part information

SOLISTRAND Series

Terminals TERM R 16-14 8 TERM R 16-14 8
