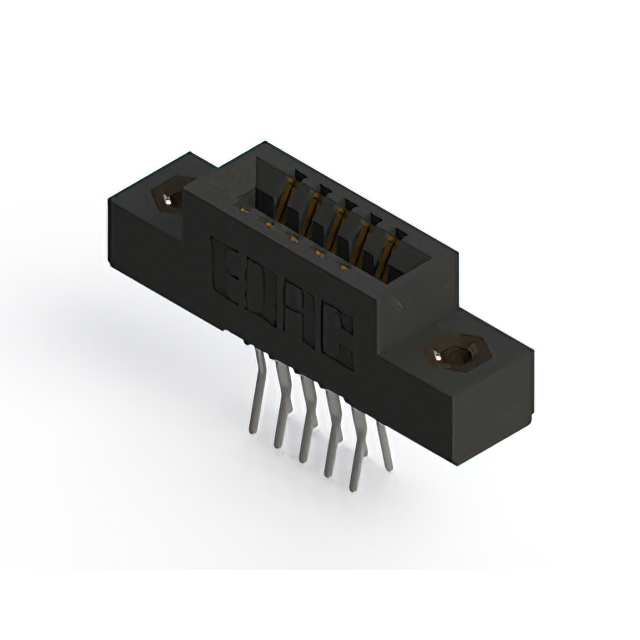

391-010-560-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 10POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-010-560-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 10POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-010-560-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
391-010 Series
| Part | Termination Rows | Contact Type | Contact Material | Card Type | Color | Termination | Pitch [x] | Pitch [x] | Features | Material - Insulation | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Mounting Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Semi Bellows | Copper Alloy | Non Specified - Dual Edge | Black | Solder Eyelet(s) | 2.54 mm | 0.1 in | Card Extender | Polyester Thermoplastic | 10 | 2 | -40 °C | 105 ░C | Female | Through Hole | Dual | 10 Áin | 0.25 Ám | 5 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
EDAC Inc. | 1 | Semi Bellows | Copper Alloy | Non Specified - Single Edge | Black | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 | 1 | -40 °C | 105 ░C | Female | Through Hole | Single | 10 Áin | 0.25 Ám | 10 | Flush Mount M3 Threaded Insert Top Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | 2 | Semi Bellows | Copper Alloy | Non Specified - Dual Edge | Black | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 | 2 | -40 °C | 105 ░C | Female | Through Hole | Dual | 10 Áin | 0.25 Ám | 5 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | 1 | Semi Bellows | Copper Alloy | Non Specified - Single Edge | Black | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 | 1 | -40 °C | 105 ░C | Female | Through Hole | Single | 10 Áin | 0.25 Ám | 10 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |
EDAC Inc. | 1 | Semi Bellows | Copper Alloy | Non Specified - Single Edge | Black | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 | 1 | -40 °C | 105 ░C | Female | Through Hole | Single | 10 Áin | 0.25 Ám | 10 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | 1 | Semi Bellows | Copper Alloy | Non Specified - Single Edge | Black | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 | 1 | -40 °C | 105 ░C | Female | Through Hole | Single | 10 Áin | 0.25 Ám | 10 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |
EDAC Inc. | 2 | Semi Bellows | Copper Alloy | Non Specified - Dual Edge | Black | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 | 2 | -40 °C | 105 ░C | Female | Through Hole | Dual | 10 Áin | 0.25 Ám | 5 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |
EDAC Inc. | 1 | Semi Bellows | Copper Alloy | Non Specified - Single Edge | Black | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 | 1 | -40 °C | 105 ░C | Female | Through Hole | Single | 10 Áin | 0.25 Ám | 10 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | 2 | Semi Bellows | Copper Alloy | Non Specified - Dual Edge | Black | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 | 2 | -40 °C | 105 ░C | Female | Through Hole | Dual | 10 Áin | 0.25 Ám | 5 | Flush Mount M3 Threaded Insert Top Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | 2 | Semi Bellows | Copper Alloy | Non Specified - Dual Edge | Black | Solder | 2.54 mm | 0.1 in | Card Extender | Polyester Thermoplastic | 10 | 2 | -40 °C | 105 ░C | Female | Through Hole | Dual | 10 Áin | 0.25 Ám | 5 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
391-010 Series
10 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
