12STRVIOSXL250
ActiveRemington Industries
HOOK-UP STRND 12AWG VIOLET 250'
12STRVIOSXL250
ActiveRemington Industries
HOOK-UP STRND 12AWG VIOLET 250'
Description
General part information
12STRVIOSXL250

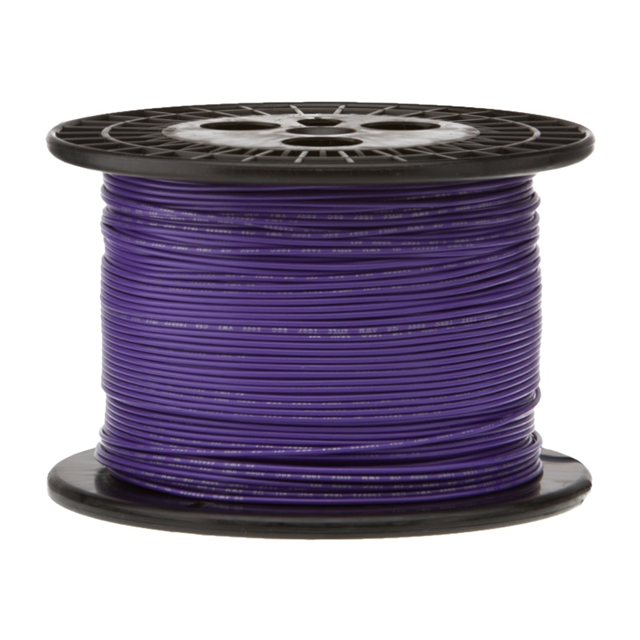

12 AWG Hook-Up, Automotive Wire 19/25 Violet 60V 250.0' (76.2m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 12STRVIOSXL250 |
|---|---|
| Cable Type | Hook-Up, Automotive |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 19 |
| Conductor Strand Gauge | 25 AWG |
| Features | Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant |
| Jacket (Insulation) Diameter | 0.161 in |
| Jacket (Insulation) Material | Polyethylene (XLPE) |
| Jacket Color | Violet |
| Length | 250 ft |
| Operating Temperature | 125 °C |
| Voltage | 60 V |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
