PFRA.090.009

Active

SCHURTER Inc.

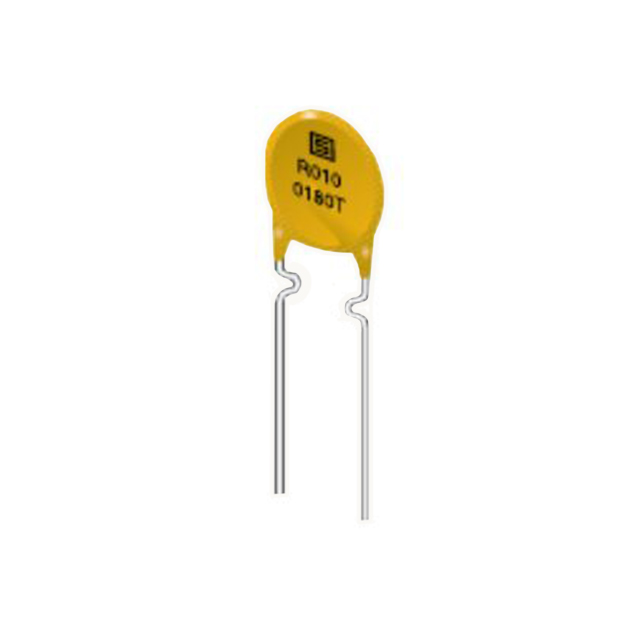

PTC RESET FUSE 30V 900MA RADIAL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PTC RESET FUSE 30V 900MA RADIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PFRA.090.009	PFRA.090 Series

Approval Agency	CSA, TUV, UL	CSA, TUV, UL, cURus
Current - Hold (Ih) (Max) [Max]	900 mA	900 mA
Current - Max [Max]	40 A	40 A
Current - Trip (It)	1.8 A	1.8 A
Height - Seated (Max) [Max]	16.7 mm	16.7 mm
Height - Seated (Max) [Max]	0.657 in	0.657 in
Lead Spacing	5.1 mm	5.1 mm
Lead Spacing	0.201 in	0.201 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Disc, Radial	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	70 mOhms	70 - 140 mOhms
Resistance - Post Trip (R1) (Max) [Max]	220 mOhms	220 - 470 mOhms
Size / Dimension [custom]	3.1 mm	3.1 mm
Size / Dimension [custom]	0.122 "	0.122 "
Size / Dimension [diameter]	0.461 in	0.461 in
Size / Dimension [diameter]	11.7 mm	11.7 mm
Time to Trip	5.9 s	5.9 - 7.2 s
Type	Polymeric	Polymeric
Voltage - Max [Max]	30 V	30 - 60 V

PTC RESET FUSE 30V 900MA RADIAL

Part	Package / Case	Resistance - Initial (Ri) (Min) [Min]	Current - Trip (It)	Resistance - Post Trip (R1) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Lead Spacing	Lead Spacing	Type	Voltage - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [diameter]	Mounting Type	Approval Agency	Time to Trip
SCHURTER Inc. PFRA.090.009	Disc, Radial	70 mOhms	1.8 A	220 mOhms	900 mA	5.1 mm	0.201 in	Polymeric	30 V	85 °C	-40 °C	40 A	16.7 mm	0.657 in	3.1 mm	0.461 in	0.122 "	11.7 mm	Through Hole	CSA, TUV, UL	5.9 s
SCHURTER Inc. PFRA.090.2	Disc, Radial	140 mOhms	1.8 A	470 mOhms	900 mA	5.1 mm	0.201 in	Polymeric	60 V	85 °C	-40 °C	40 A	16.7 mm	0.657 in	3.1 mm	0.461 in	0.122 "	11.7 mm	Through Hole	cURus, TUV	7.2 s

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 30V 900 mA Ih Through Hole Radial, Disc
