Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TDA7715LV | TDA7715 Series |
|---|---|---|
| - | - | |
| Function | Fully Integrated Processor | Fully Integrated Processor |
| Interface | I2C | I2C |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Channels [custom] | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

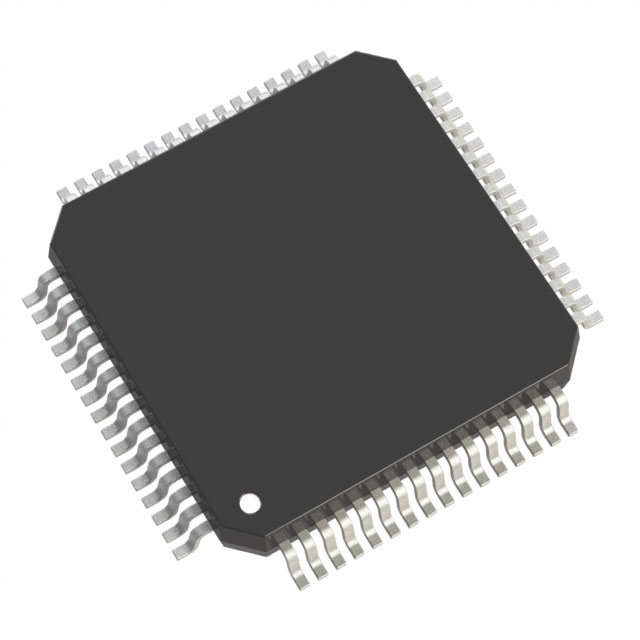

| Package / Case | 64-LQFP | 64-LQFP |
| Supplier Device Package | 64-TQFP (10x10) | 64-TQFP (10x10) |
| Voltage - Supply [Max] | 12.5 V | 12.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 960 | $ 4.01 | |
TDA7715 Series
3 band car audio processor
| Part | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Interface | Mounting Type | Package / Case | Function | Number of Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TDA7715LV | ||||||||||
STMicroelectronics TDA7715LV | 64-TQFP (10x10) | 85 °C | -40 °C | 4.5 V | 12.5 V | I2C | Surface Mount | 64-LQFP | Fully Integrated Processor | 2 |
Description
General part information
TDA7715 Series
The TDA7715LV is a high performance signal processor specifically designed for car radio applications.
The device includes a high performance audio processor with fully integrated audio filters and new SoftStep architecture. The digital control allows programming in a wide range of filter characteristics.
