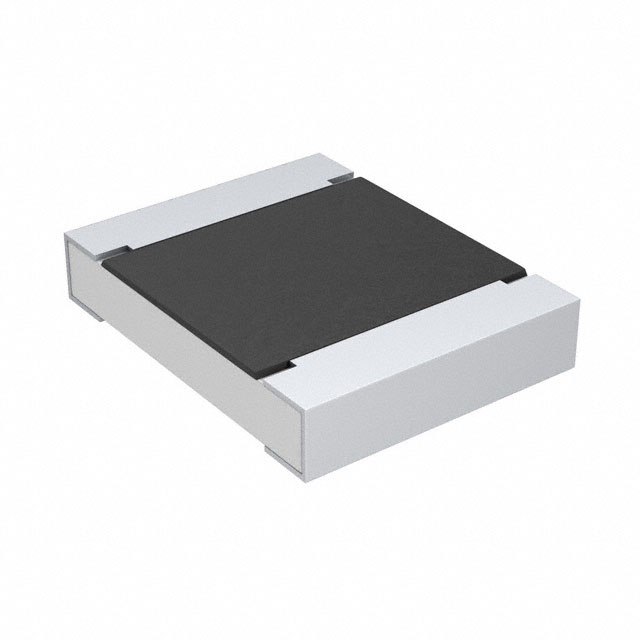

CRCW12106K49FKTA

Active

Vishay Dale

RES SMD 6.49K OHM 1% 1/2W 1210

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CRCW12106K49FKTA

Active

Vishay Dale

RES SMD 6.49K OHM 1% 1/2W 1210

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRCW12106K49FKTA	CRCW1210 Series

Composition	Thick Film	Thick Film
Features	Automotive AEC-Q200	Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max)	-	0.7 mm
Height - Seated (Max)	-	0.028 in
Height - Seated (Max) [Max] [z]	0.6 mm	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in	0.024 in
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1210	1210
Package / Case	3225 Metric	3225 Metric
Power (Watts)	0.5 W	0.5 - 0.75 W
Power (Watts)	0.5 W	0.5 - 0.75 W
Ratings	AEC-Q200	AEC-Q200
Resistance	6.49 kOhms	0 - 750000 Ohms
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	2.5 mm	2.5 mm
Size / Dimension [y]	0.098 in	0.098 in
Supplier Device Package	1210	1210
Temperature Coefficient	100 ppm/°C	50 - 200 ppm/°C
Tolerance	1 %	1 - 5 %
Tolerance	-	Jumper

CRCW1210 Series

CRCW1210-HP 200 240R 5% ET6 E3

...

Part	Tolerance	Ratings	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistance	Power (Watts)	Power (Watts)	Package / Case	Package / Case	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Number of Terminations	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Vishay Dale CRCW1210240RJNECHP	5 %	AEC-Q200	1210	3.2 mm	2.5 mm	0.126 in	0.098 in	240 Ohms	0.75 W	0.75 W	1210	3225 Metric	200 ppm/°C	0.7 mm	0.028 in	Automotive AEC-Q200, Pulse Withstanding	2	Thick Film	155 °C	-55 °C
Vishay Dale CRCW1210102KFKEAHP	1 %	AEC-Q200	1210	3.2 mm	2.5 mm	0.126 in	0.098 in	102 kOhms	0.75 W	0.75 W	1210	3225 Metric	100 ppm/°C	0.7 mm	0.028 in	Automotive AEC-Q200, Pulse Withstanding	2	Thick Film	155 °C	-55 °C
Vishay Dale CRCW121014K0FKEAHP	1 %	AEC-Q200	1210	3.2 mm	2.5 mm	0.126 in	0.098 in	14 kOhms	0.75 W	0.75 W	1210	3225 Metric	100 ppm/°C	0.7 mm	0.028 in	Automotive AEC-Q200, Pulse Withstanding	2	Thick Film	155 °C	-55 °C
Vishay Dale CRCW1210100RFKTB	1 %	AEC-Q200	1210	3.2 mm	2.5 mm	0.126 in	0.098 in	100 Ohms	0.5 W	0.5 W	1210	3225 Metric	100 ppm/°C			Automotive AEC-Q200	2	Thick Film	155 °C	-55 °C	0.6 mm	0.024 in
Vishay Dale CRCW12101R69FKEA	1 %	AEC-Q200	1210	3.2 mm	2.5 mm	0.126 in	0.098 in	1.69 Ohms	0.5 W	0.5 W	1210	3225 Metric	100 ppm/°C			Automotive AEC-Q200	2	Thick Film	155 °C	-55 °C	0.6 mm	0.024 in
Vishay Dale CRCW12101R13FKEAHP	1 %	AEC-Q200	1210	3.2 mm	2.5 mm	0.126 in	0.098 in		0.75 W	0.75 W	1210	3225 Metric	100 ppm/°C	0.7 mm	0.028 in	Automotive AEC-Q200, Pulse Withstanding	2	Thick Film	155 °C	-55 °C
Vishay Dale CRCW121030K9FKEAHP	1 %	AEC-Q200	1210	3.2 mm	2.5 mm	0.126 in	0.098 in	30.9 kOhms	0.75 W	0.75 W	1210	3225 Metric	100 ppm/°C	0.7 mm	0.028 in	Automotive AEC-Q200, Pulse Withstanding	2	Thick Film	155 °C	-55 °C
Vishay Dale CRCW12106K80FKTA	1 %	AEC-Q200	1210	3.2 mm	2.5 mm	0.126 in	0.098 in	6.8 kOhms	0.5 W	0.5 W	1210	3225 Metric	100 ppm/°C			Automotive AEC-Q200	2	Thick Film	155 °C	-55 °C	0.6 mm	0.024 in
Vishay Dale CRCW1210348RFKEA	1 %	AEC-Q200	1210	3.2 mm	2.5 mm	0.126 in	0.098 in	348 Ohms	0.5 W	0.5 W	1210	3225 Metric	100 ppm/°C			Automotive AEC-Q200	2	Thick Film	155 °C	-55 °C	0.6 mm	0.024 in
Vishay Dale CRCW12101M37FKEA	1 %	AEC-Q200	1210	3.2 mm	2.5 mm	0.126 in	0.098 in	1.37 MOhms	0.5 W	0.5 W	1210	3225 Metric	100 ppm/°C			Automotive AEC-Q200	2	Thick Film	155 °C	-55 °C	0.6 mm	0.024 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.08

Description

General part information

CRCW1210 Series

6.49 kOhms ±1% 0.5W, 1/2W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200 Thick Film
