03010SS-12M-AA-00

Active

NMB TECHNOLOGIES

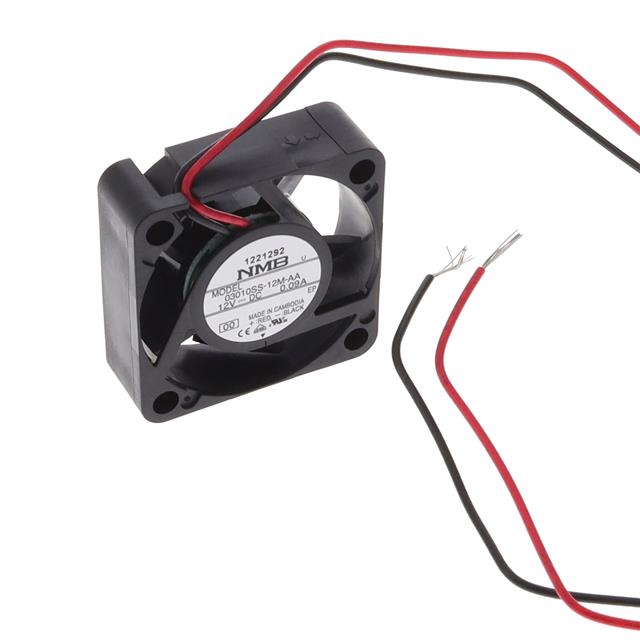

DC AXIAL FAN, 12 V, SQUARE, 30 MM, 10 MM, SLEEVE BEARING, 3.9 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

03010SS-12M-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 30 MM, 10 MM, SLEEVE BEARING, 3.9 CFM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.47
		10	$ 6.26
		25	$ 6.08
		50	$ 5.71
		100	$ 5.14
		250	$ 5.06
		500	$ 4.74
Newark	Each	1	$ 8.06
		1080	$ 7.27
		1980	$ 7.15
		2520	$ 7.01
		5040	$ 6.89
		10080	$ 6.62

Description

General part information

03010SS Series

Fan Tubeaxial 12VDC Square - 30mm L x 30mm H Sleeve 3.9 CFM (0.109m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Specification	03010SS-12M-AA-00	03010SS Series

Air Flow	3.9 CFM	0.098 - 3.9 mł/min
Air Flow	0.109 m³/min	0.109 m³/min
Air Flow	-	3.5 - 4.2 CFM
Bearing Type	Sleeve	Sleeve
Current Rating (Amps)	70 mA	0.21 - 120 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart	Locked Rotor Sensor, Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	30000 Hrs	30000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	30 dB(A)	23.5 - 34 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	840 mW	0.8 - 840 mW
RPM	9500 RPM	8500 - 10500 RPM
Size / Dimension [x]	30 mm	30 mm
Size / Dimension [z]	30 mm	30 mm
Static Pressure	47.3 Pa	47.3 - 59.8 Pa
Static Pressure	0.19 in H2O	0.19 - 0.24 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	5 - 12 VDC
Voltage Range [Max]	13.2 VDC	5.5 - 13.2 VDC
Voltage Range [Min]	7 V	4.5 - 7 V
Weight	-	8.62 g
Weight	-	0.019 lb
Width [y]	10 mm	10 mm

Part

Material - Blade

Current Rating (Amps)

Width [y]

Features

Bearing Type

Size / Dimension [x]

Size / Dimension [z]

Air Flow

Operating Temperature [Max]

Operating Temperature [Min]

Termination

RPM

Power (Watts)

Noise

Voltage Range [Max]

Voltage Range [Min]

Lifetime @ Temp.

Voltage - Rated

Fan Type

Material - Frame

Static Pressure

Air Flow

Weight

NMB TECHNOLOGIES

03010SS-12L-AL-00

Plastic

60 mA

10 mm

Auto Restart, Locked Rotor Sensor

Sleeve

30 mm

0.098 mł/min

3.5 CFM

70 °C

-10 °C

3 Wire Leads

8500 RPM

720 mW

26 dB

13.2 VDC

7 V

30000 Hrs

12 VDC

Tubeaxial

Plastic

NMB TECHNOLOGIES

03010SS-12M-AT-00

Plastic

70 mA

10 mm

Auto Restart, Speed Sensor (Tach)

Sleeve

30 mm

3.9 CFM

70 °C

-10 °C

3 Wire Leads

9500 RPM

840 mW

30 dB(A)

13.2 VDC

7 V

30000 Hrs

12 VDC

Tubeaxial

Plastic

47.3 Pa

0.19 in H2O

0.109 m³/min

NMB TECHNOLOGIES

03010SS-05M-AT-00

Plastic

10 mm

Auto Restart, Speed Sensor (Tach)

Sleeve

30 mm

3.9 CFM

70 °C

-10 °C

3 Wire Leads

9500 RPM

0.8 W

26 dB

5.5 V

4.5 V

30000 Hrs

5 V

Tubeaxial

Plastic

47.3 Pa

0.19 in H2O

0.109 m³/min

NMB TECHNOLOGIES

03010SS-12M-AA-00

Plastic

70 mA

10 mm

Auto Restart

Sleeve

30 mm

3.9 CFM

70 °C

-10 °C

2 Wire Leads

9500 RPM

840 mW

30 dB(A)

13.2 VDC

7 V

30000 Hrs

12 VDC

Tubeaxial

Plastic

47.3 Pa

0.19 in H2O

0.109 m³/min

NMB TECHNOLOGIES

03010SS-05L-AT-00

Plastic

120 mA

10 mm

Auto Restart, Speed Sensor (Tach)

Sleeve

30 mm

0.098 mł/min

3.5 CFM

70 °C

-10 °C

3 Wire Leads

8500 RPM

600 mW

23.5 dB(A)

5.5 V

4.5 V

30000 Hrs

5 V

Tubeaxial

Plastic

NMB TECHNOLOGIES

03010SS-05N-AL-00

Plastic

0.21 A

10 mm

Auto Restart, Locked Rotor Sensor

Sleeve

30 mm

0.118 m³/min

4.2 CFM

70 °C

-10 °C

3 Wire Leads

10500 RPM

1.05 W

28 dB

5.5 V

4.5 V

30000 Hrs

5 V

Tubeaxial

Plastic

59.8 Pa

0.24 in H2O

NMB TECHNOLOGIES

03010SS-05M-AL-00

Plastic

10 mm

Auto Restart, Locked Rotor Sensor

Sleeve

30 mm

3.9 CFM

70 °C

-10 °C

3 Wire Leads

9500 RPM

0.8 W

26 dB

5.5 V

4.5 V

30000 Hrs

5 V

Tubeaxial

Plastic

47.3 Pa

0.19 in H2O

0.109 m³/min

NMB TECHNOLOGIES

03010SS-05M-AA-00

Plastic

10 mm

Auto Restart

Sleeve

30 mm

3.9 CFM

70 °C

-10 °C

2 Wire Leads

9500 RPM

0.8 W

26 dB

5.5 V

4.5 V

30000 Hrs

5 V

Tubeaxial

Plastic

47.3 Pa

0.19 in H2O

0.109 m³/min

NMB TECHNOLOGIES

03010SS-12M-AL-00

Plastic

70 mA

10 mm

Auto Restart, Locked Rotor Sensor

Sleeve

30 mm

3.9 CFM

70 °C

-10 °C

3 Wire Leads

9500 RPM

840 mW

30 dB(A)

13.2 VDC

7 V

30000 Hrs

12 VDC

Tubeaxial

Plastic

47.3 Pa

0.19 in H2O

0.109 m³/min

NMB TECHNOLOGIES

03010SS-12N-AA-00

Plastic

10 mm

Auto Restart

Sleeve

30 mm

0.118 m³/min

4.2 CFM

70 °C

-10 °C

2 Wire Leads

10500 RPM

34 dB(A)

30000 Hrs

12 VDC

Tubeaxial

Plastic

59.8 Pa

0.24 in H2O

Part	Material - Blade	Current Rating (Amps)	Width [y]	Features	Bearing Type	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	RPM	Power (Watts)	Noise	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Voltage - Rated	Fan Type	Material - Frame	Static Pressure	Static Pressure	Air Flow
NMB TECHNOLOGIES 03010SS-12L-AL-00	Plastic	60 mA	10 mm	Auto Restart, Locked Rotor Sensor	Sleeve	30 mm	30 mm	0.098 mł/min	3.5 CFM	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	8500 RPM	720 mW	26 dB	13.2 VDC	7 V	30000 Hrs	12 VDC	Tubeaxial	Plastic
NMB TECHNOLOGIES 03010SS-12M-AT-00	Plastic	70 mA	10 mm	Auto Restart, Speed Sensor (Tach)	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	9500 RPM	840 mW	30 dB(A)	13.2 VDC	7 V	30000 Hrs	12 VDC	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-05M-AT-00	Plastic		10 mm	Auto Restart, Speed Sensor (Tach)	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	9500 RPM	0.8 W	26 dB	5.5 V	4.5 V	30000 Hrs	5 V	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-12M-AA-00	Plastic	70 mA	10 mm	Auto Restart	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	9500 RPM	840 mW	30 dB(A)	13.2 VDC	7 V	30000 Hrs	12 VDC	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-05L-AT-00	Plastic	120 mA	10 mm	Auto Restart, Speed Sensor (Tach)	Sleeve	30 mm	30 mm	0.098 mł/min	3.5 CFM	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	8500 RPM	600 mW	23.5 dB(A)	5.5 V	4.5 V	30000 Hrs	5 V	Tubeaxial	Plastic
NMB TECHNOLOGIES 03010SS-05N-AL-00	Plastic	0.21 A	10 mm	Auto Restart, Locked Rotor Sensor	Sleeve	30 mm	30 mm	0.118 m³/min	4.2 CFM	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	10500 RPM	1.05 W	28 dB	5.5 V	4.5 V	30000 Hrs	5 V	Tubeaxial	Plastic	59.8 Pa	0.24 in H2O
NMB TECHNOLOGIES 03010SS-05M-AL-00	Plastic		10 mm	Auto Restart, Locked Rotor Sensor	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	9500 RPM	0.8 W	26 dB	5.5 V	4.5 V	30000 Hrs	5 V	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-05M-AA-00	Plastic		10 mm	Auto Restart	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	9500 RPM	0.8 W	26 dB	5.5 V	4.5 V	30000 Hrs	5 V	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-12M-AL-00	Plastic	70 mA	10 mm	Auto Restart, Locked Rotor Sensor	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	9500 RPM	840 mW	30 dB(A)	13.2 VDC	7 V	30000 Hrs	12 VDC	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-12N-AA-00	Plastic		10 mm	Auto Restart	Sleeve	30 mm	30 mm	0.118 m³/min	4.2 CFM	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	10500 RPM		34 dB(A)			30000 Hrs	12 VDC	Tubeaxial	Plastic	59.8 Pa	0.24 in H2O
